Are you a factory or a trading company?

ZHEJIANG SELHOT ELECTRIC CO., LTD. is a manufacturer of distribution boxes, junction boxes, isolation switches and electrical accessories, ISO 9001 certified, with a 20,000 m² factory, 37 injection-molding machines, 22 test stations and over 800 m² of laboratories.

What is the difference between IP65 and IP66?

Both ratings are defined under IEC 60529. IP65 is dust-tight and protects against low-pressure water jets — suitable for SHA and HT Series. IP66 adds powerful jet and heavy-sea protection — recommended for SHPN, SHT and HTS Series. IP67 (SHEN Series) adds temporary immersion protection.

Which material should I choose — PC or ABS?

Choose UV-stabilized PC for outdoor, solar and marine environments with high sunlight and impact exposure. ABS is a cost-effective option for indoor or shaded outdoor installations.

Can you customize the distribution box?

Yes. We customize color, material and flame-retardant grade, knockout positions, internal DIN-rail layout, way count and PV combiner wiring, plus mold and tooling development.

What way counts are available?

Standard configurations range from 2-way up to 36-way. Custom way counts and module capacities can be produced on request.

Which certifications do your products carry?

CE, RoHS and TUV certified under ISO 9001. Products comply with EN 60670-1 and DIN EN 60670-24; ingress protection tested per IEC 60529 and impact ratings IK08/IK09 per IEC 62262. Test reports available on request.

What are your sample and delivery lead times?

Samples are typically ready in 3–5 days. Stock items ship within 15 days; lead times for large or customized orders are confirmed at quotation.

What is your MOQ and do you support OEM/ODM?

MOQ depends on the model and customization level and is confirmed at quotation. We support OEM and ODM including custom branding, packaging and mold development.

Product Range

Waterproof Distribution Box Series

14 enclosure families across four application groups — outdoor general-purpose, solar PV, circuit-breaker MCB, and fully custom tooling. Part of the SELHOT four-line range; select a series for full specifications and CAD-ready dimensions.

SELHOT white IP66 plastic distribution box with transparent cover and circuit breaker

Outdoor PC & ABS Waterproof Boxes

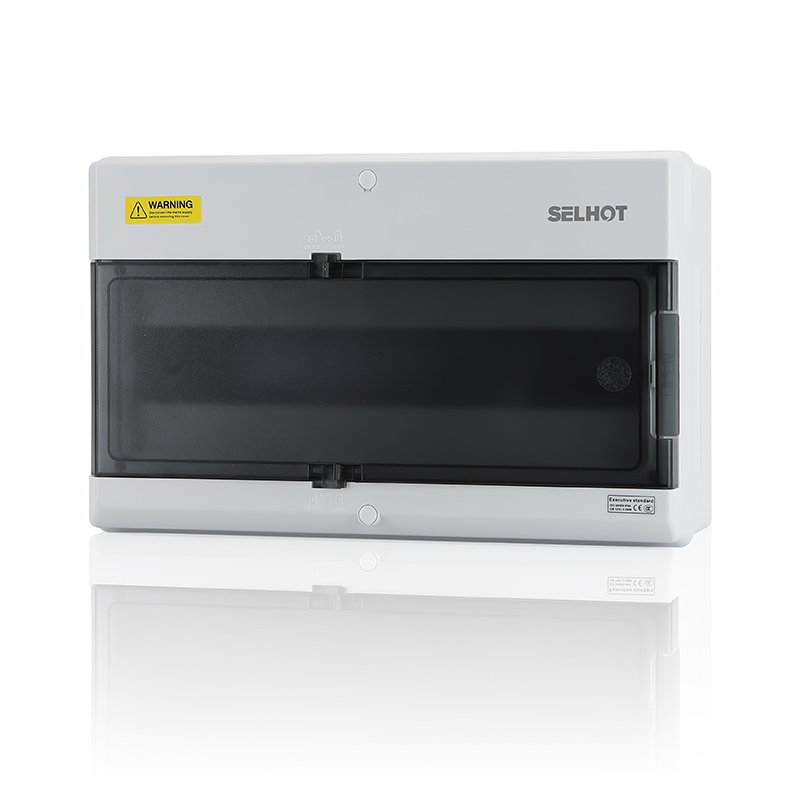

IP66 Plastic Distribution Box

Model : SHPN Series

IP66IK094–36 Way400V75AABS/PC

View IP66 Plastic Distribution Box specifications

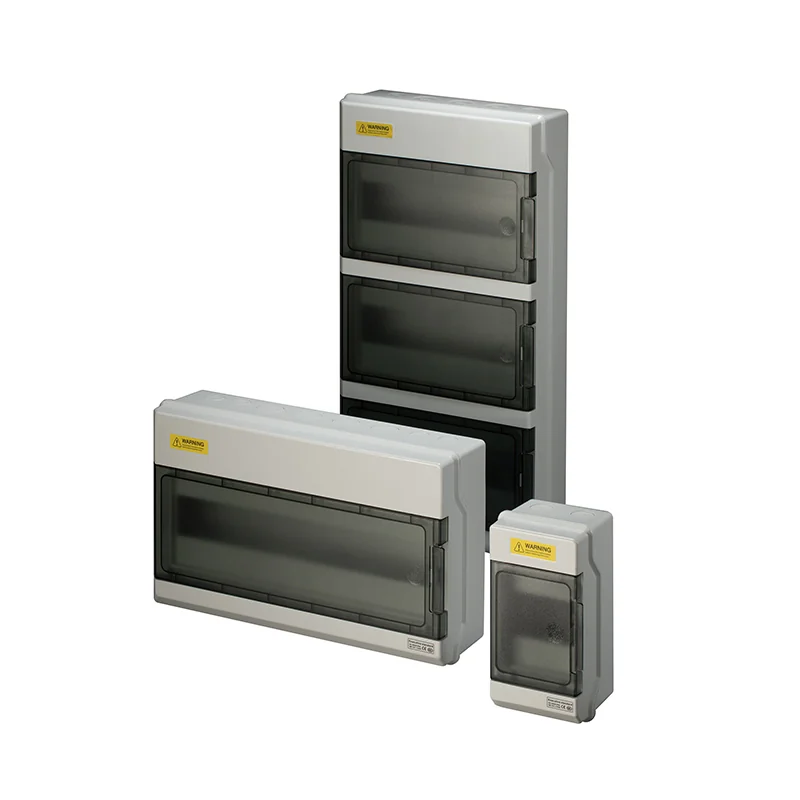

IP66 plastic distribution box SHPN series

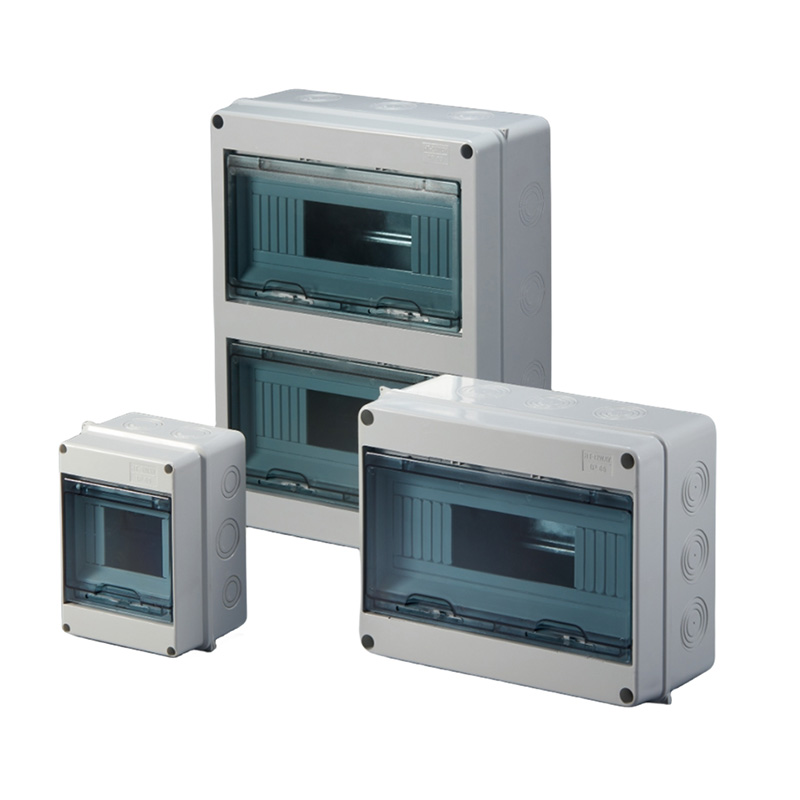

Outdoor ABS Distribution Box

Model : HTS Series

IP664/8/12 WayABS/PCIEC 60670Wall Mount

View Outdoor ABS Distribution Box specifications

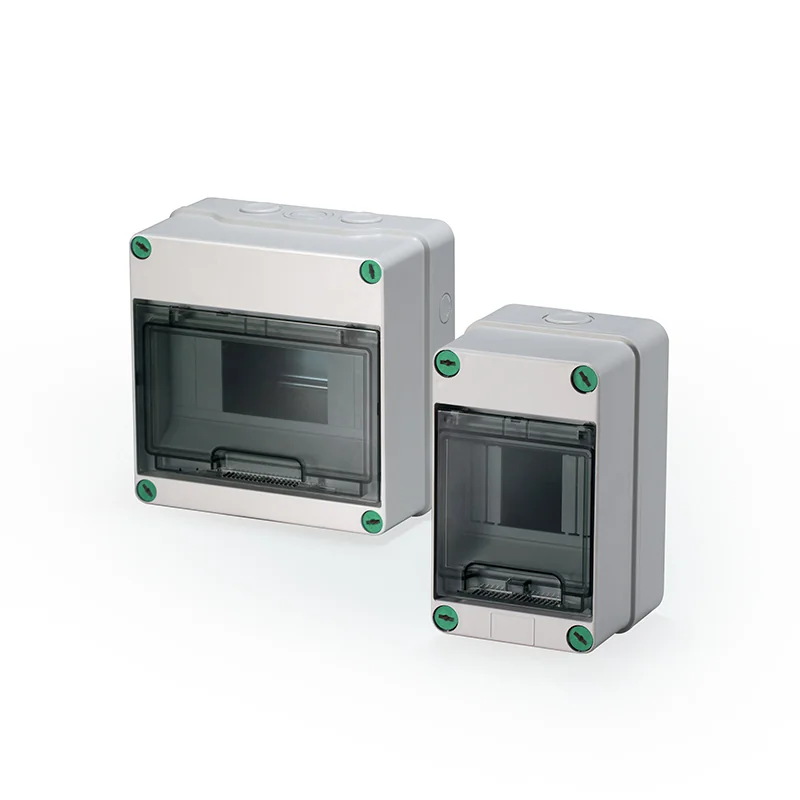

Outdoor ABS waterproof distribution box HTS series

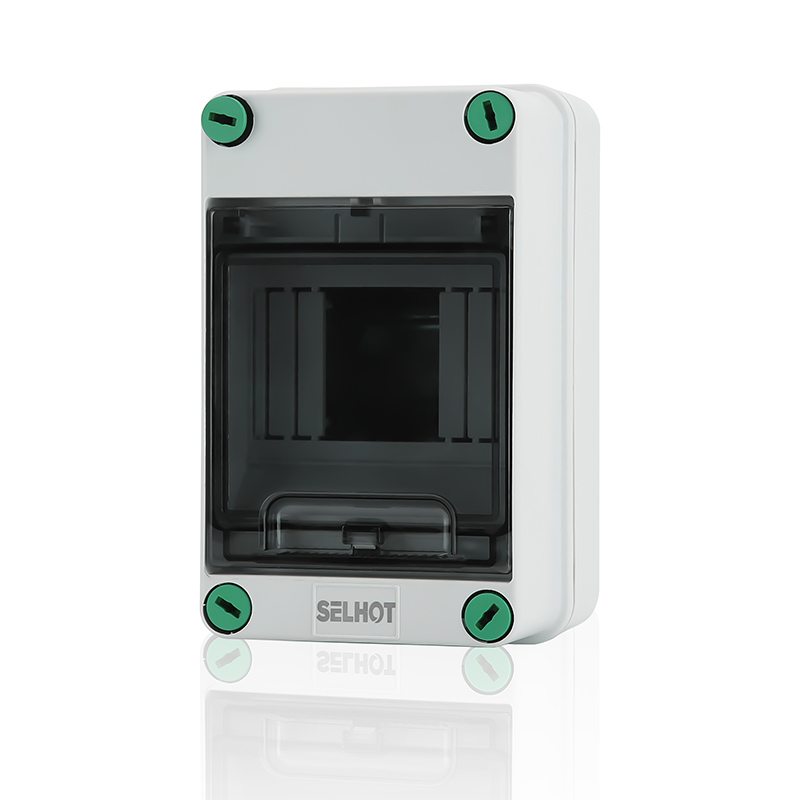

ABS Distribution Box

Model : SHT Series

IP66IK084–12 Way400V75AABS/PC

View ABS Distribution Box specifications

Wall Mount Electric Distribution Box

Model : SHXC Series

400V690V75AClass IIWall Mount

View Wall Mount Electric Distribution Box specifications

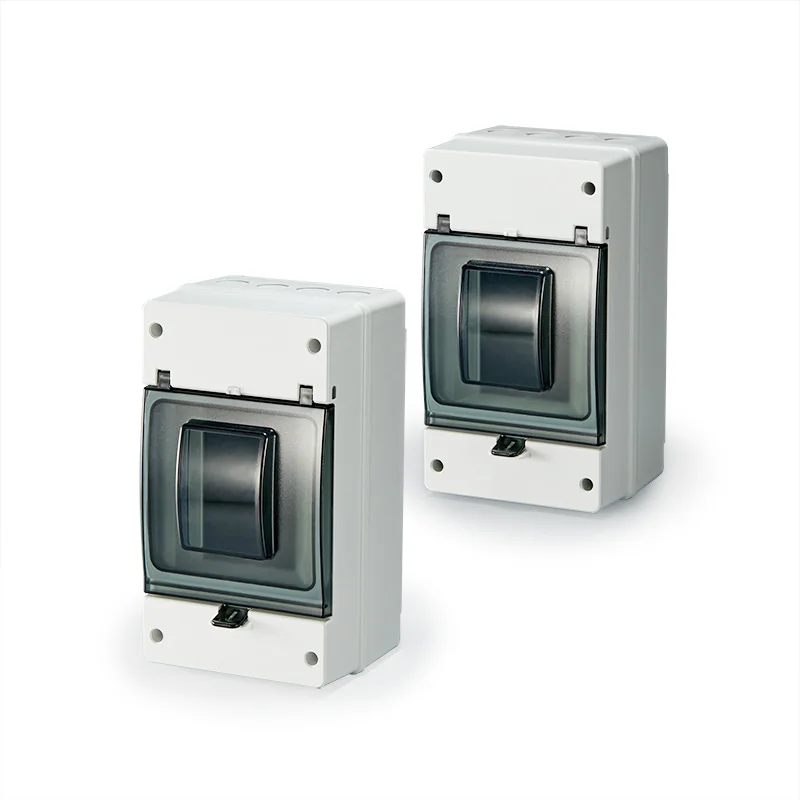

Wall mount electric distribution box SHXC series

Solar PV & DC Combiner Enclosures

PV Distribution Box

Model : SHA Series

IP65IK094–36 Way400V75AEN 60670-1

View PV Distribution Box specifications

PV DC Moulded Case Circuit Breaker Enclosure

Model : SHXC

PV DCMCCB Enclosure1000V DCWall Mount

View PV DC MCCB Enclosure specifications

PV DC moulded case circuit breaker enclosure SHXC

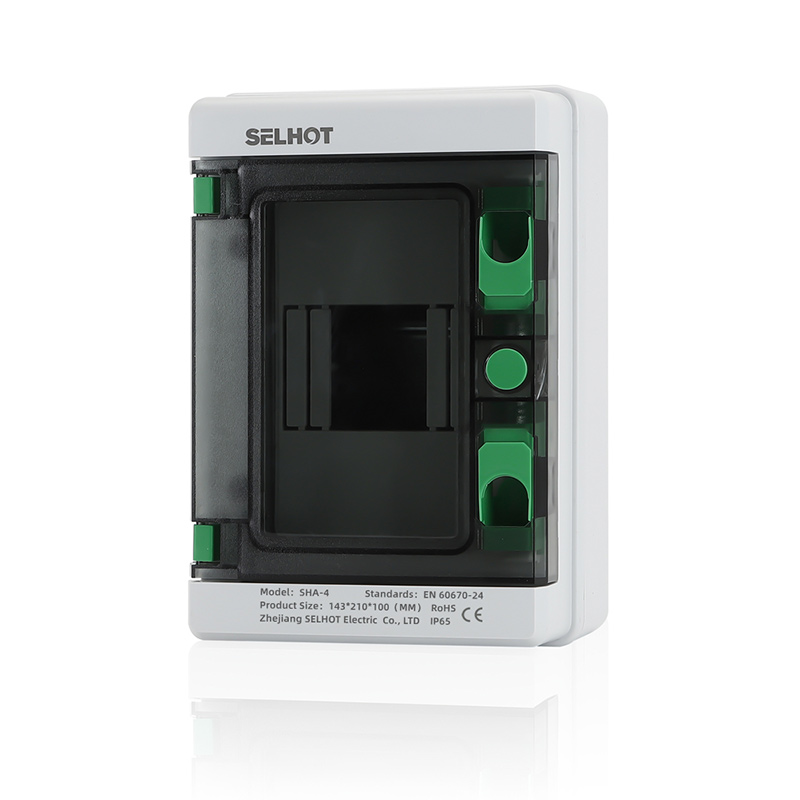

IP65 Distribution Box

Model : SHA Series

IP65IK094–36 Way400V75AABS/PC

View IP65 Distribution Box specifications

IP65 waterproof distribution box SHA series

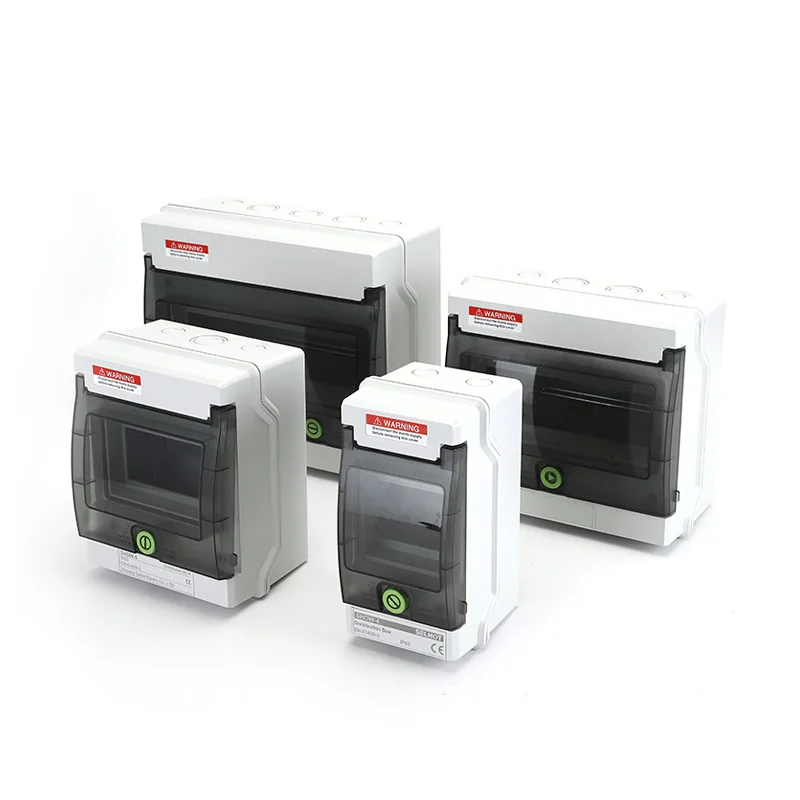

Power Distribution Boxes

Model : SHOW Series

IP65IK09400V75AClass IIEN 60670-1

View Power Distribution Box specifications

MCB Circuit-Breaker & Multi-Way Boards

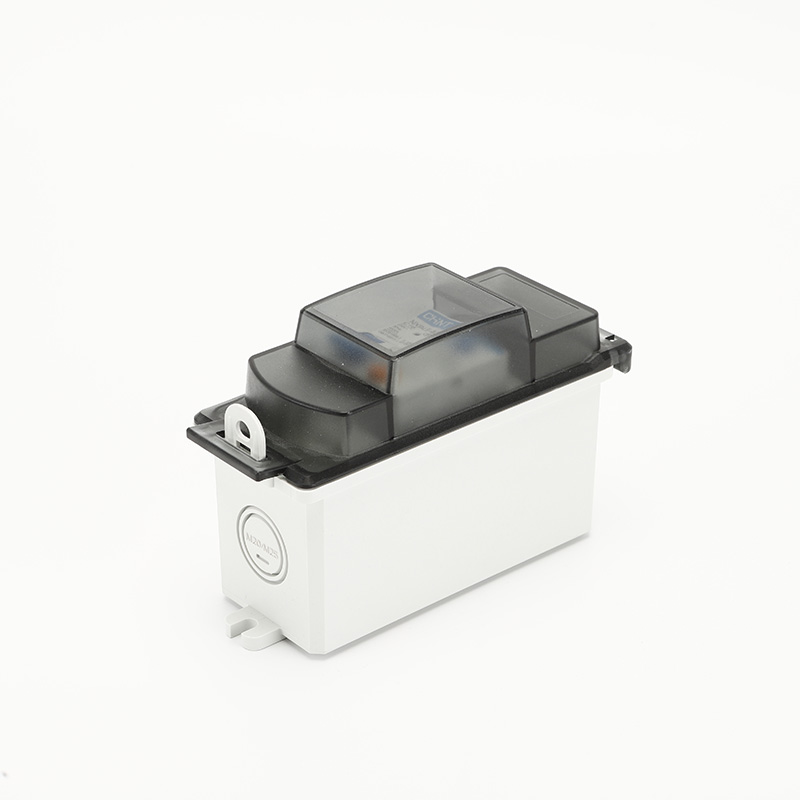

Circuit Breaker Distribution Box

Model : SHEN Series

IP67IK09400V75AABS/PCEN 60670-1

View Circuit Breaker Distribution Box specifications

Circuit breaker MCB distribution box SHEN series

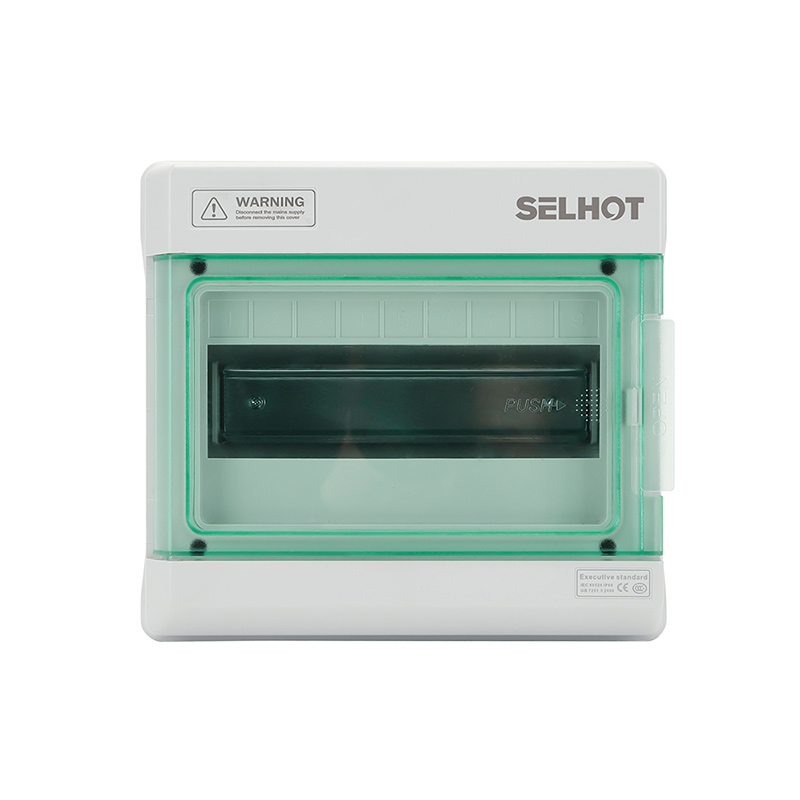

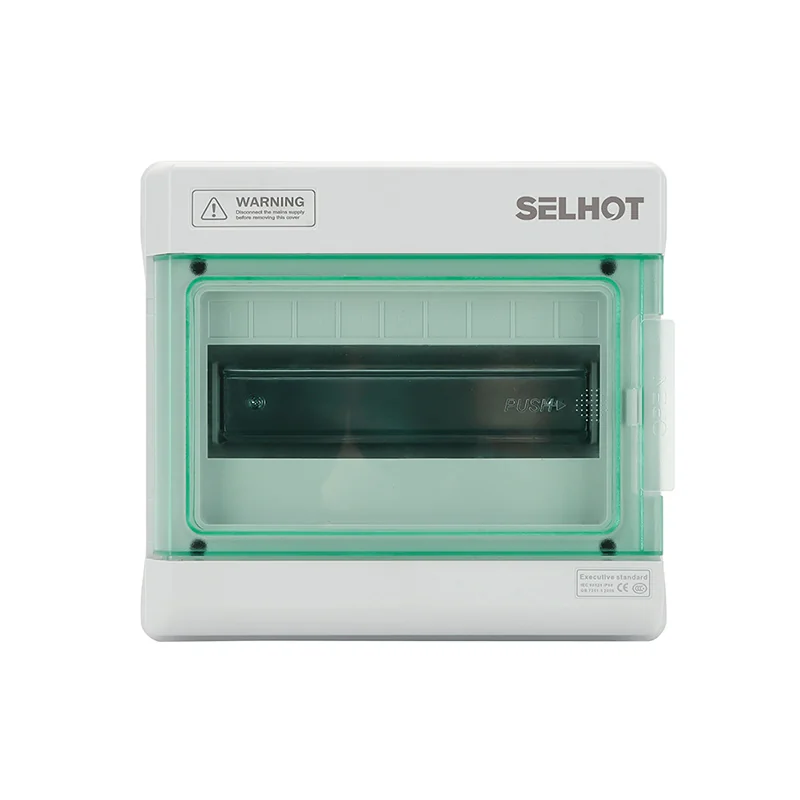

Waterproof Electrical Distribution Box

Model : SHPN Series

IP66IK09400V75AClass IIEN 60670-1

View Waterproof Electrical Distribution Box specifications

Waterproof electrical distribution box SHPN series

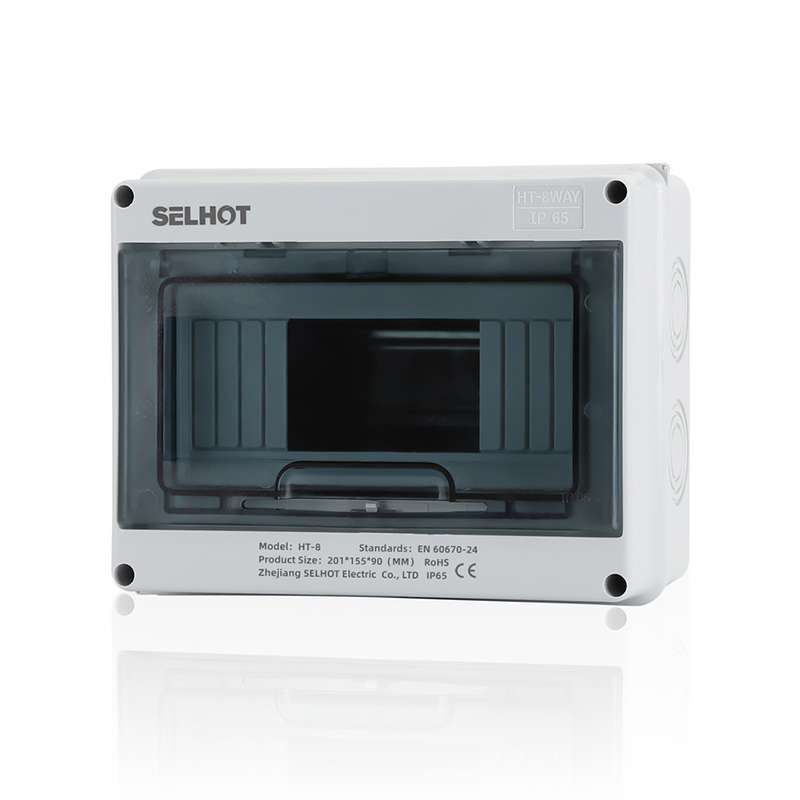

Classic IP65 Waterproof Distribution Box

Model : HT Series

IP65IK084–24 Way400V75AABS/PC

View Classic IP65 Distribution Box specifications

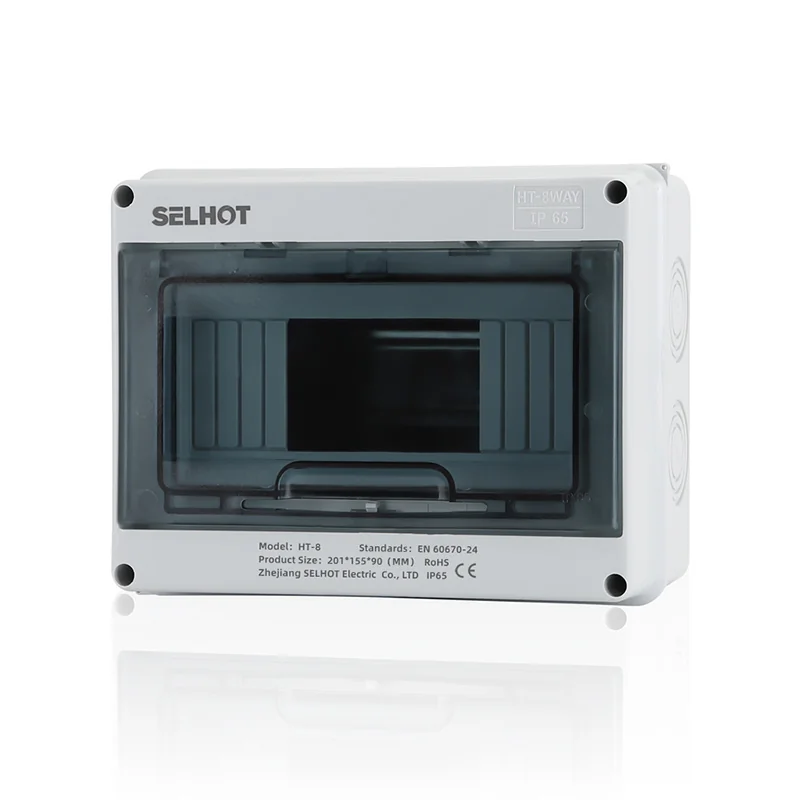

Classic IP65 waterproof distribution box HT series

4-Way to 36-Way Distribution Box

Model : SHPN Series

IP66IK094–36 Way400V75AEN 60670-1

View 4–36 Way Distribution Box specifications

4 way to 36 way distribution box SHPN series

Custom & Knockout-Ready Enclosures

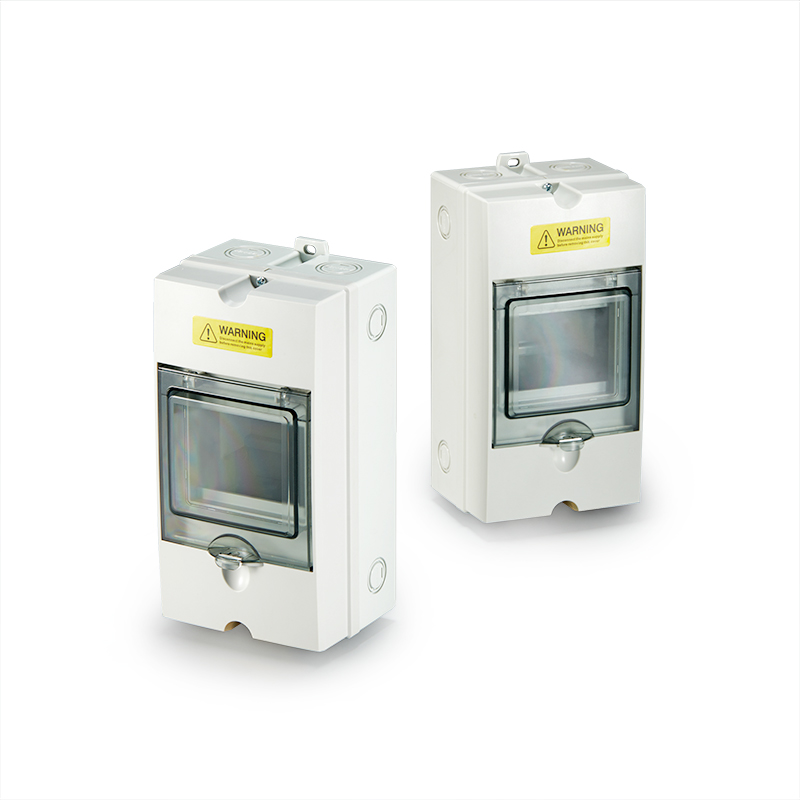

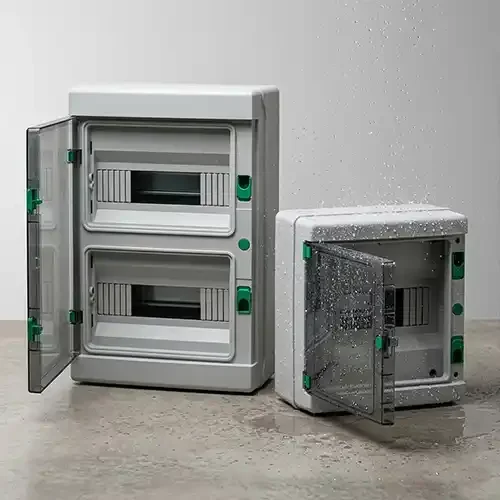

Custom Distribution Boxes

Model : SHPZ Series

OEM/ODMCustom SizeColor & MaterialMold Tooling

View Custom Distribution Box specifications

Removable Knockout Hole Waterproof Distribution Box

Model : SHT Series

IP66IK084–12 Way400V75AKnockout

View Knockout Waterproof Distribution Box specifications

Removable knockout hole waterproof distribution box SHT series

Technical Data

Technical Specifications & IP Protection Ratings

All SELHOT distribution boxes are manufactured in our ISO 9001 certified facility and tested per IEC 60529 (ingress protection) and EN 60670-1. Use the tabs below to compare series, select IP ratings, and review applicable standards.

SELHOT Distribution Box Series — Technical Comparison
Series	Material	IP	IK	Ways	Voltage	Current	Standard
SHPN	ABS / PC	IP66	IK09	4–36	400V	75A	EN 60670-1
HTS	ABS / PC	IP66	—	4 / 8 / 12	400V	—	IEC 60670
SHA	ABS / PC	IP65	IK09	4–36	400V	75A	EN 60670-1
HT	ABS / PC	IP65	IK08	4–24	400V	75A	EN 60670-1
SHT	ABS / PC	IP66	IK08	4–12	400V	75A	EN 60670-1
SHEN	ABS / PC	IP67	IK09	MCB	400V	75A	EN 60670-1
SHOW	ABS / PC	IP65	IK09	—	400V	75A	EN 60670-1
SHXC	ABS / PC	—	—	PV DC	690V / 1000V DC	75A	—

General Technical Parameters
Parameter	Specification
Housing Material	UV-stabilized PC (polycarbonate) / flame-retardant ABS
Ingress Protection	IP65 / IP66 / IP67 — tested per IEC 60529
Impact Resistance	IK08 (5 J) / IK09 (10 J) — per IEC 62262
Enclosure Standard	EN 60670-1, DIN EN 60670-24; MCB housings per IEC 62208
Flammability Rating	UL94 V-0; glow-wire 650°C per IEC 60695-2-11
Insulation Class	Class II / double insulation
Rated Voltage	Up to 690V AC / 1000V DC (PV models)
Operating Temperature	-25°C to +85°C (continuous); SHA/SHOW rated -25°C to +80°C
Mounting	Surface / wall mount; internal DIN-rail (35mm)
Cable Entry	Pre-formed knockouts; removable gland plates
Certification	CE, RoHS, TUV; ISO 9001 factory

Ingress protection ratings are defined under IEC 60529. The first digit indicates dust protection (6 = dust-tight); the second digit indicates water protection. All SELHOT distribution boxes are validated in our in-house laboratory before shipment — view test reports ›

IP65

Dust-Tight, Jet-Protected

Digit 6 = complete dust ingress protection. Digit 5 = protection against low-pressure water jets from any direction. Ideal for outdoor lighting, irrigation, and standard rooftop solar (SHA, HT, SHOW Series).

IP66

Dust-Tight, High-Pressure Protected

Digit 6/6 adds protection against powerful water jets and heavy seas. Recommended for construction sites, washdown areas, marine environments, and high-exposure solar (SHPN, HTS, SHT Series).

IP67

Dust-Tight, Temporary Immersion

Protected against immersion in 1 m of water for 30 minutes. Suitable for MCB circuit-breaker enclosures in areas with standing water or heavy splash (SHEN Series).

IP Rating Selection Guide
Environment	Recommended IP	SELHOT Series
Under eaves / sheltered outdoor	IP65	SHA, HT, SHOW
Full outdoor exposure, driving rain	IP66	SHPN, HTS, SHT
Washdown, construction, marine deck	IP66 minimum	SHPN, SHEN
Standing water / brief submersion risk	IP67	SHEN
Solar PV combiner / string protection	IP65 or IP66	SHA (IP65), SHPN (IP66)

IEC 60529Ingress protection (IP code) — defines dust and water test methods for IP65, IP66 and IP67 ratings.All SELHOT distribution box series

IEC 62262IK code for mechanical impact — IK08 (5 J) and IK09 (10 J, equivalent to 5 kg dropped from 200 mm).SHPN, SHA, SHEN, SHOW (IK09); HT, SHT (IK08)

IEC 62208Empty enclosures for low-voltage switchgear and controlgear assemblies — applies to MCB/modular distribution housings.SHPN, SHEN, SHOW Series

EN 60670-1Enclosures for household and similar fixed electrical installations — European compliance baseline for distribution boards.SHA, SHPN, HT, SHT, SHEN, SHOW

DIN EN 60670-24German supplementary requirements for enclosure compliance — relevant for DACH market imports.SHA, SHOW and export-Germany projects

IEC 60695-2-11Glow-wire flammability test at 650°C — supports UL94 V-0 flame-retardant housing material.All ABS/PC enclosure batches

IK Impact Protection — IEC 62262
IK Rating	Impact Energy	Equivalent Test	SELHOT Series
IK08	5 joules	0.5 kg mass from 200 mm	HT, SHT
IK09	10 joules	5 kg mass from 200 mm	SHPN, SHA, SHEN, SHOW

Way Count & Module Capacity (SHPN / HT Series)
Configuration	Modules (18mm)	Typical Use	Mounting
2-Way	2	Single circuit / sub-feed	Surface
4-Way	4	Small outdoor lighting	Surface
8-Way	8	Residential / kiosk	Surface
12-Way	12	Light commercial	Surface
18-Way	18	PV string / irrigation	Surface
24-Way	24	Commercial sub-board	Surface
36-Way	36	Industrial distribution	Surface

Material Comparison — PC vs. ABS
Property	PC (Polycarbonate)	ABS
UV Resistance	Excellent (UV-stabilized, 100% outdoor rated)	Good (indoor/shaded preferred)
Impact Strength	Very high (IK08 / IK09 capable)	High
Temperature Range	-25°C to +85°C	-20°C to +70°C
Transparency Option	Yes (clear lids available)	No
Best For	Outdoor / solar / marine / washdown	Indoor / cost-sensitive outdoor

Customization

Our Customizable Options

Whether you need a standard IP66 distribution board or a fully customized PV combiner box enclosure, SELHOT provides end-to-end OEM/ODM services — from hole drilling and color matching to joint mold development.

Color

Match distribution box shell colors to your brand or project palette. We support RAL color matching for ABS and PC housings — from standard grey and white to custom greens, blues and municipal colors for outdoor lighting and solar installations.

Custom color options ›

Get A Free Proposal

Request Sample

Applications

Application Scenarios

Six core deployment patterns for SELHOT modular distribution boards — each mapped to the series, IP rating and way count actually specified on site, from temporary construction feeds to PV combiner boards and EV hub MCB enclosures.

Highly suitable — Engineered to exceed typical site hazards Suitable — Recommended for standard configurations Limited — Material selection or custom upgrades advised for extreme exposure

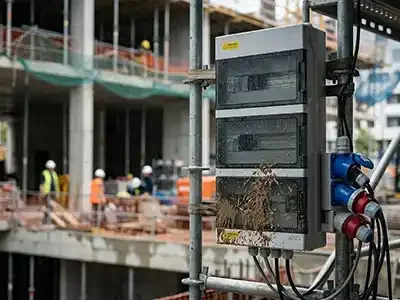

SELHOT HTS distribution boxes on construction and engineering sites

Suitable

Construction Sites

Construction sitesTemporary power

HTSSHTSHPN

Engineered to withstand heavy-duty impacts, dust, and sudden downpours on active jobsites. The HTS and SHT knockout boxes provide rugged physical protection (IK08), while the SHPN series handles higher mechanical stress for exposed cable distribution. Fully compatible with IEC 60309 industrial plugs to ensure secure, flexible, and plug-and-play temporary site power.

IP66IK08/IK09400V / 75AKnockout & DIN-rail

View SHPN distribution boxes

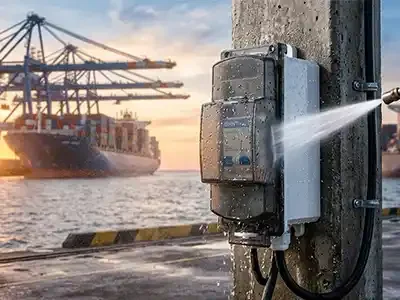

SELHOT SHEN marine and harbor power distribution at ports and docks

Limited

Ports & Docks

PortsDocksCoastal terminals

SHPNSHEN

Built to combat extreme salinity, high humidity, and intensive high-pressure washdowns. The SHPN (IP66) and SHEN (IP67) enclosures are thoroughly salt-spray tested to safeguard quayside terminals. While ABS is optimal for sheltered paths, UV-stabilized polycarbonate (PC) is highly recommended for long-term coastal exposure to prevent aging.

IP66/IP67IK09400VSalt-spray tested

View SHEN IP67 boards

SELHOT SHEN waterproof distribution boxes in mining and tunnel engineering

Highly Suitable

Tunnels & Mining

TunnelsVentilation & lighting feeds

SHENSHPN

Designed for low-airflow, high-condensation, and high-moisture underground environments. The heavy-duty SHEN series (IP67) delivers absolute dust-tight sealing and temporary immersion protection for critical circuits. Alongside the SHPN series, they serve as reliable, low-maintenance wall-mount boards for tunnel ventilation and lighting sub-systems.

IP67IK09Humidity ≤100%-25°C to +80°C

View SHEN/SHPN series

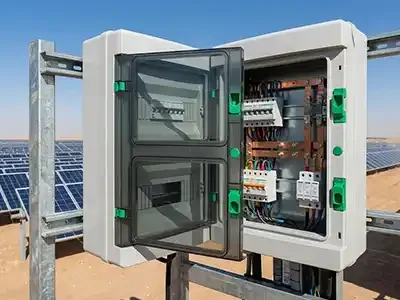

SELHOT SHA PV combiner and distribution boxes at photovoltaic power stations

Highly Suitable

Photovoltaic & Wind Power

PhotovoltaicWind powerCombiner boards

SHASHXCSHPN

Optimized for full outdoor exposure and severe thermal cycling in solar and wind farms. The SHA series houses AC string and inverter circuits effortlessly. For solar DC layouts, the SHXC supports heavy DC MCCB setups up to 1000V DC. The vibration-resistant SHPN series is ideal for auxiliary wind-turbine nacelle power distribution.

IP65/IP66IK094–36 WayEN 60670-1

View SHA PV distribution boxes

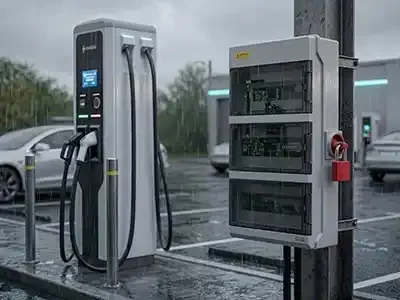

SELHOT SHPN outdoor EV charging pile power distribution application

Suitable

Outdoor EV Charging Hubs

EV chargingOutdoor pilesParking hubs

SHPNSHENUKFA/B

Tailored for commercial parking hubs and roadside EV infrastructure. SHPN and SHEN MCB boards act as rugged, weatherproof feeder enclosures distributing 400V circuits to charging piles. Paired with UKFA/B padlockable rotary isolators (IP65), they guarantee a safe, physical AC disconnect during roadside maintenance.

IP66/IP67IK09400VIsolator IP65

View EV feeder boards

SELHOT SHT economical indoor distribution box application

Highly Suitable

Indoor Economical Distribution

Indoor applicationsDust protectionCorrosion resistance

HTSHT

The ultimate high-efficiency, cost-effective solution for commercial premises, indoor workshops, and utility rooms. Constructed from premium halogen-free ABS/PC, the HT and SHT series provide dependable seals against dust and ambient moisture. Outfitted with pre-installed DIN-rails and premium brass terminals for reliable, everyday circuit control.

IP65IK08Indoor/outdoorClass IIRAL 7035

View SHT indoor series

Product Range

Related SELHOT Product Lines

One manufacturer for the full outdoor electrical stack — specify distribution boards alongside these complementary lines on the same project.

Why SELHOT

Distribution Box Manufacturer — SELHOT

Technical Support

Over 20 years designing and manufacturing weatherproof MCB enclosures to IEC 62208 standards. Our engineering team responds to the technical challenges of your project from spec to delivery.

IEC 62208IK08 Impact20+ Years

Quick Response

We respect your timelines. Stock items ship within 15 days and samples are ready in just 3–5 days, keeping your projects on schedule.

3–5 Day Samples15-Day Dispatch

Outstanding Quality

Every product passes strict pre-shipment testing — high/low temperature, waterproof (IPX5/IPX6) and dust ingress — and carries CE, RoHS and TUV international certification.

CERoHSTUVIP66 Tested

Certified Production

Production is monitored at every stage under an ISO 9001 quality system, across a 20,000 m² plant with 37 injection-molding machines and 22 dedicated test stations.

ISO 900137 Molding Lines22 Test Stations

Quality & Compliance

Certifications & Quality Testing

All SELHOT distribution boxes comply with EN 60670-1 and DIN EN 60670-24. Ingress protection is verified per IEC 60529; impact resistance is tested to IK08/IK09 per IEC 62262. Every batch is validated in our 800 m² in-house laboratory before shipment.

CESHPN / HA / HT series CE certificate

RoHSSHPN REACH & RoHS compliance report

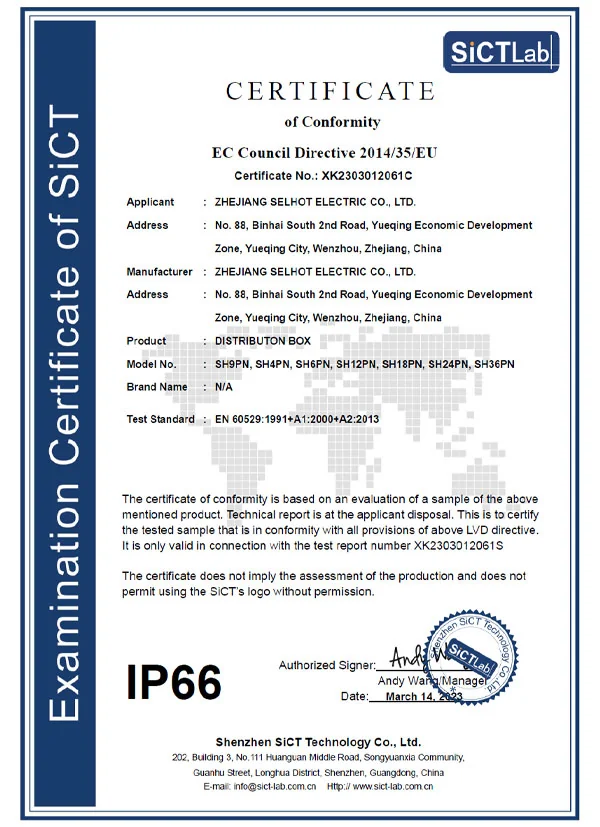

IP66SHPN IP66 ingress protection test report

TUV / CETSM third-party CE certificate

Power Distribution Box — Certificate Documents

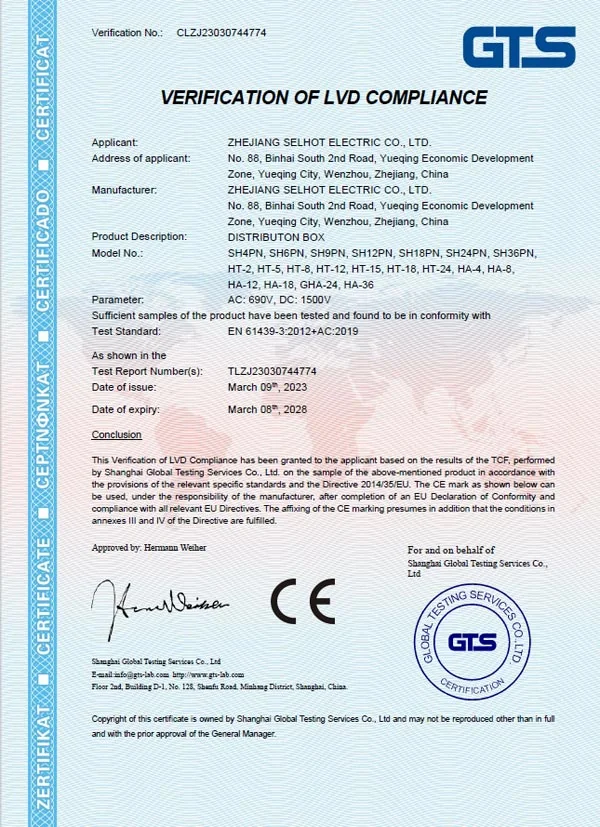

SHPN HA HT series CE certificate — SHPN / HA / HT CE

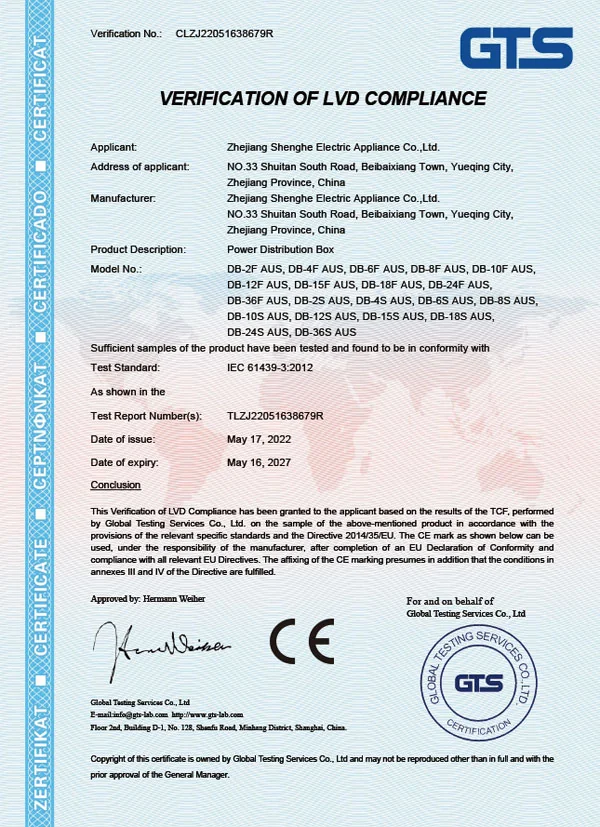

TSM CE certificate CLZJ22051638679R — TSM CE Certificate

SHPN IP66 test report — SHPN IP66 Report

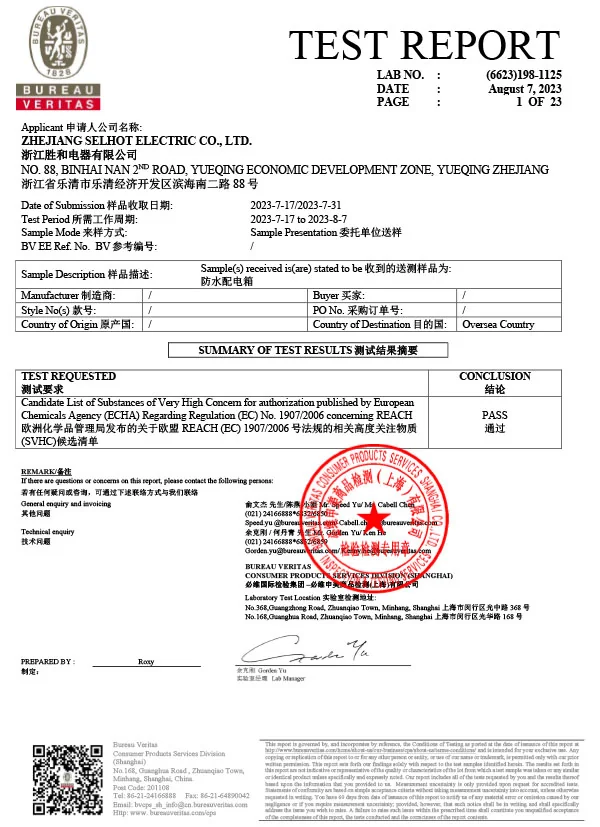

SHPN REACH RoHS report — SHPN REACH / RoHS

View all SELHOT certificates ›

Technical Documents

Download certificates and test reports to support your RFQ, import approval and project specification.

CE & RoHS Certificate PackSHPN / HA / HT series — view all certificates

IP66 Test Report (SHPN)IEC 60529 ingress protection validation

Request Full Catalog (PDF)Complete series specs — contact us for the latest edition

High & low temperature cycling (-25°C to +85°C)

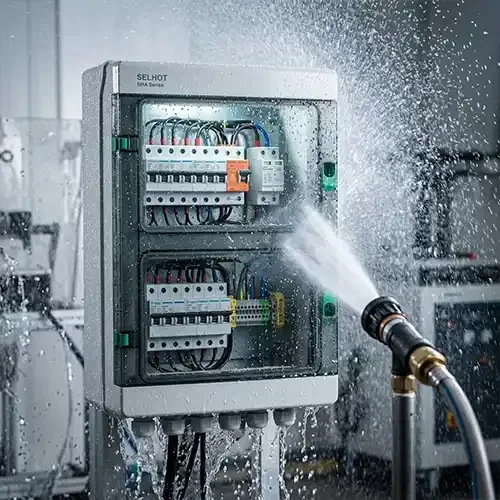

IP waterproof spray test — IPX5 (IP65) / IPX6 (IP66) per IEC 60529

Dust ingress chamber test — IP6X per IEC 60529

IK08 mechanical impact test (5 J) — IEC 62262

IK09 mechanical impact test (10 J) — IEC 62262

IP67 temporary immersion (1 m / 30 min) — SHEN Series

UV aging & weather resistance — UV-stabilized PC

Glow-wire flammability 650°C — IEC 60695-2-11 / UL94 V-0

Insulation resistance & dielectric strength

Salt spray corrosion test (marine-grade options)

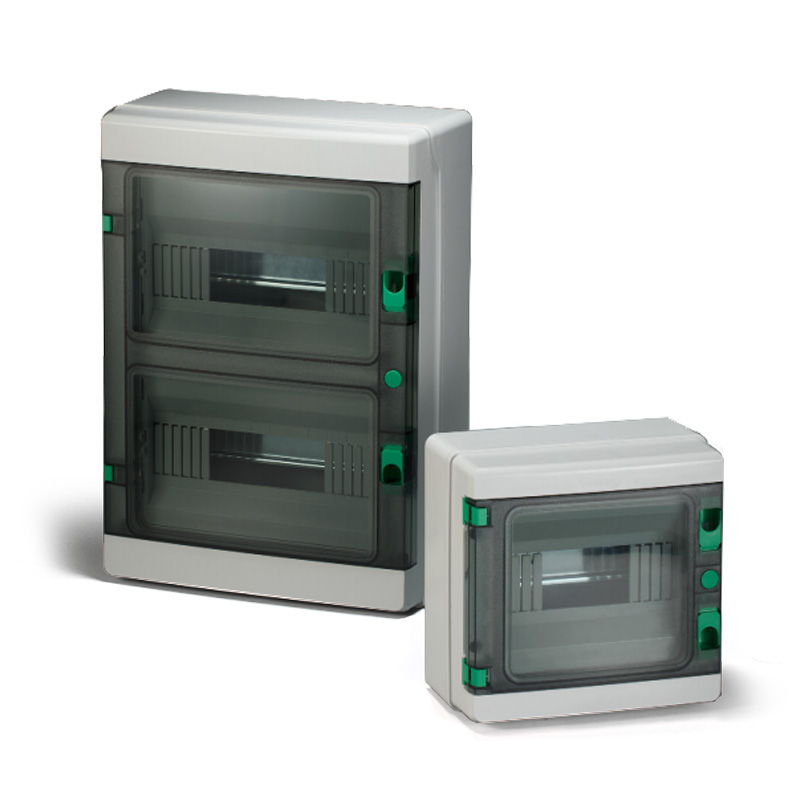

Waterproof Distribution Box Series

Outdoor PC & ABS Waterproof Boxes

Solar PV & DC Combiner Enclosures

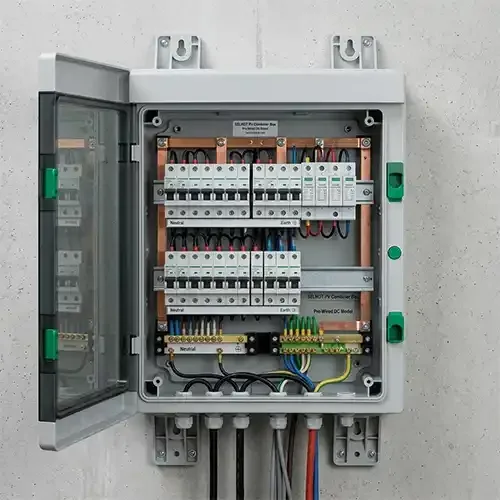

MCB Circuit-Breaker & Multi-Way Boards

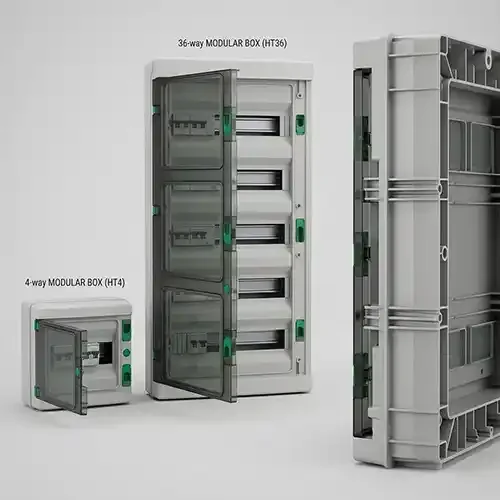

Custom & Knockout-Ready Enclosures
