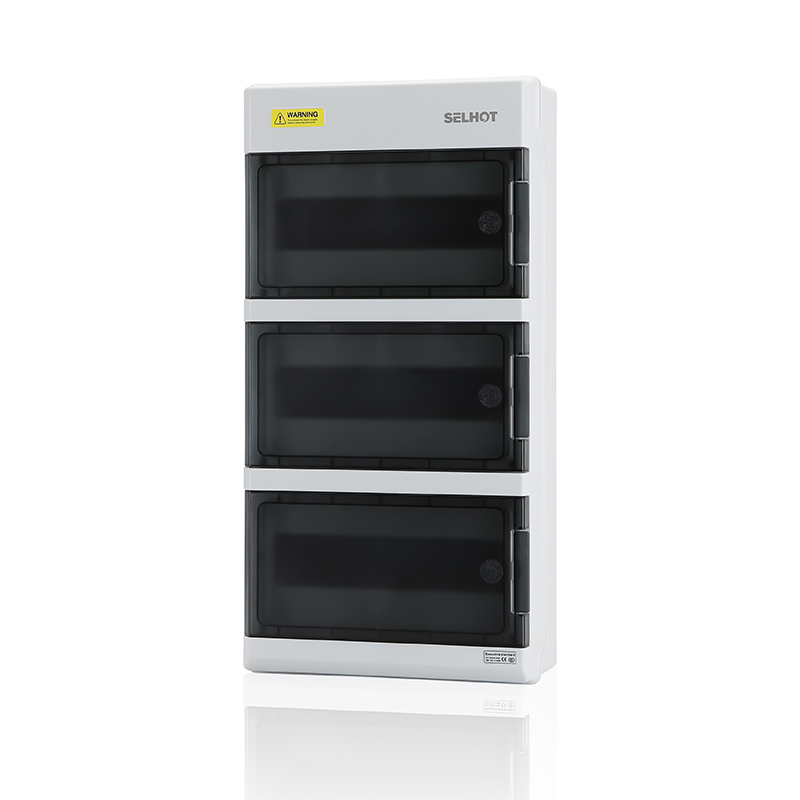

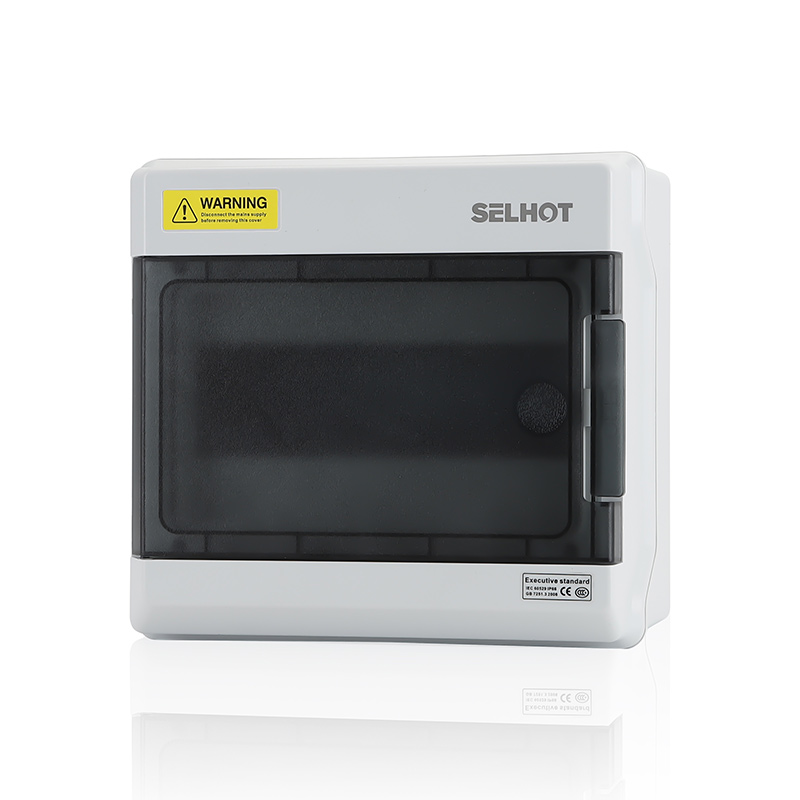

IP66 Plastic Distribution Box

Features of IP66 plastic distribution box:

1. Space-saving: Compared with traditional large-scale distribution boxes, wall-mounted distribution boxes have the advantages of small size and small floor space, saving site space.
2. IP66 plastic distribution box has stable performance: ≥ 3,75 kV dielectric strength, 1000 V CA rated insulation voltage, ABS body / PC door.
3. Operational safety: impact resistance, anti-oxidation, widely used in waterproof, dust-proof and other places

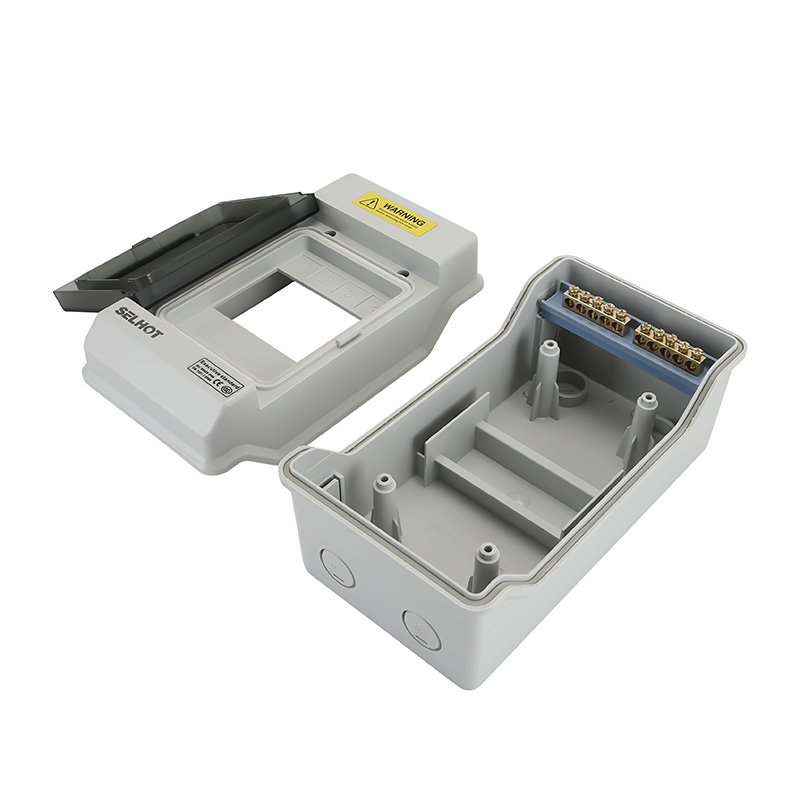

4. The distribution box is easy to disassemble and assemble: built-in guide rails can be installed with copper terminals, busbars, and circuit breakers.
5. Widely used: industrial, household, solar protection systems, communications, circuit breaker distribution boxes.

IP66 Plastic Distribution Box PRODUCT PROPERTIES

Colour: RAL 7035
Type of cover: Cover
Transparent cover: Yes
Number of modules: 4 way - 36 way
Number of rows: 1-3
Product accessories: DIN rail(s)
IP protection level: IP66
Impact protection class：IK09

IP66 Plastic Distribution Box ENVIRONMENTAL CONDITION

Application area: Indoor/Outdoor installation
Maximum ambient temperature 24 h: 35 °C
Ambient temperature: -5 °C up to +40 °C
Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C

IP66 Plastic Distribution Box ELECTRIC BOX PERFORMANCE

Rated voltage: Un = 400 V

Rated insulation voltage：Ui:690V
Protection class:II
Rated current (of the terminal):In = 75 A
N separable:No
conforming to the standards:EN 60670-1, DIN EN 60670-24

IP66 Plastic Distribution Box MATERIAL CHARACTERISTICS

Material:ABS Shell / PC Door
According to IEC 60695-2-11 glow wire test temperature:650 °C
UL 94 Class:V-2
Temperature resistance:-25 °C up to +80 °C
Halogen-free:Yes
Silicone-free:Yes

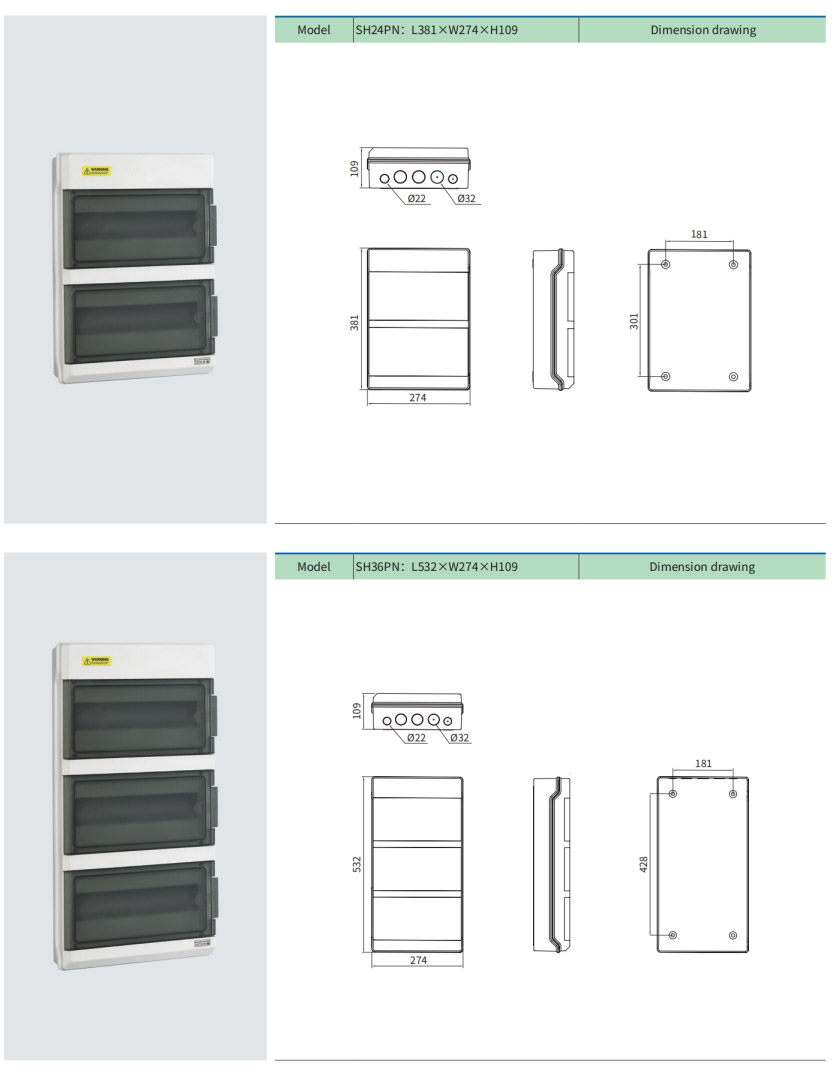

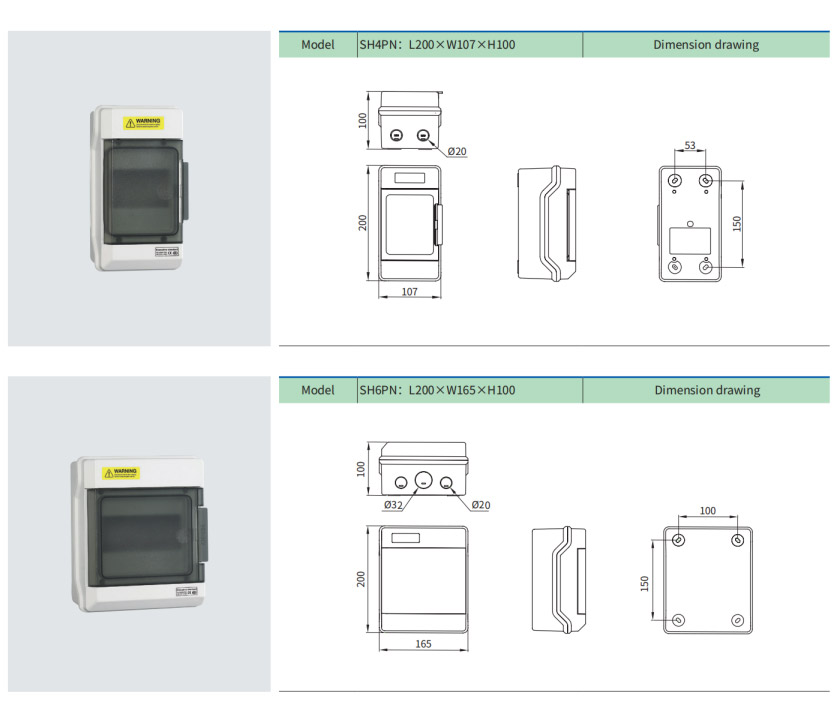

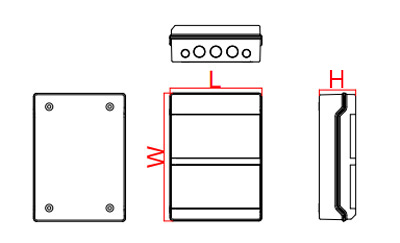

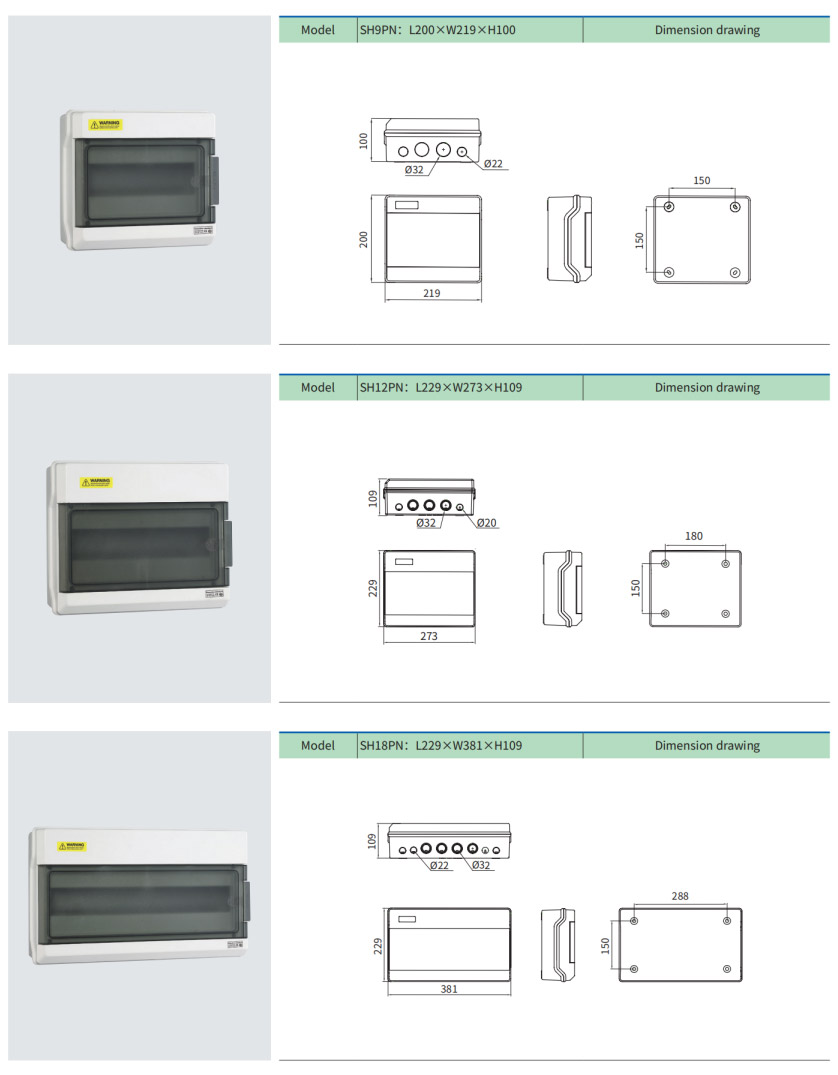

SHPN Series IP66 Plastic Distribution Box Size

Model	L	W	H
SH4PN	107	200	100
SH6PN	164	200	100
SH9PN	220	200	100
SH12PN	272	228	110
SH18PN	380	230	110
SH24PN	272	378	110
SH36PN	272	528	110
