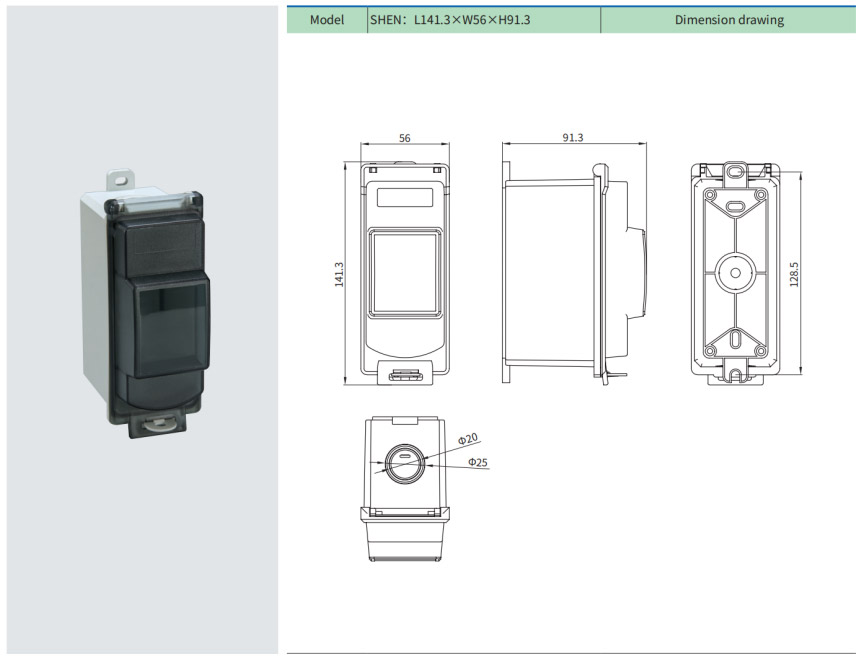

Circuit Breaker Distribution Box

Model : SHEN Series
SelHot is a distribution box manufacturer and our circuit breaker protection box casings are made of plastic material and are waterproof.
Product Detail
Description:

Circuit Breaker Distribution Box Summary

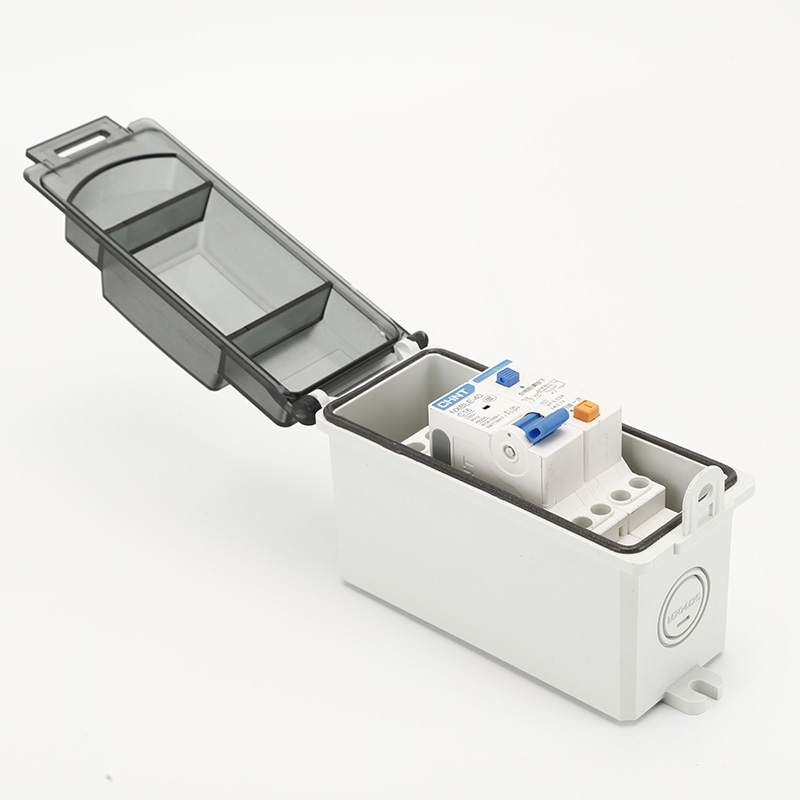

Our distribution boxes feature removable DIN rail plates suitable for DIN rail circuit breakers and direct wiring. The panel is made of high-quality ABS raw material, which has the characteristics of flame retardant, impact resistance and insulation.

We have a complete set of manufacturing equipment and facilities, as well as experienced engineers and designers. This means we can provide you with the best goods and services. As distribution box experts, our distribution boxes have a wide range of applications, making them more reliable and sustainable for long-term use.



Plastic Circuit Breaker Box Properties

Colour: RAL 7035
Type of cover: Cover
Transparent cover: Yes
Number of modules: 2 way
Number of rows: 1
Product accessories: DIN rail(s)
IP protection level: IP67
Impact protection class:IK09



Circuit Breaker Distribution Box Environmental Condition

Application area:Outdoor installation
Maximum ambient temperature 24 h: 35 °C
Ambient temperature: -5 °C up to +40 °C
Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C



Circuit Breaker Distribution Box Performance


Rated voltage: Un = 400 V
Rated insulation voltage:Ui:690V
Protection class:II
Rated current (of the terminal):In = 75 A
N separable:No
conforming to the standards:EN 60670-1, DIN EN 60670-24



IP67 Plastic Street Lamp Waterproof Box Material Characteristics


Material:ABS Shell / PC Door
According to IEC 60695-2-11 glow wire test temperature:650 °C
UL 94 Class:V-2
Temperature resistance:-25 °C up to +80 °C
Halogen-free:Yes
Silicone-free:Yes
