Custom Distribution Boxes

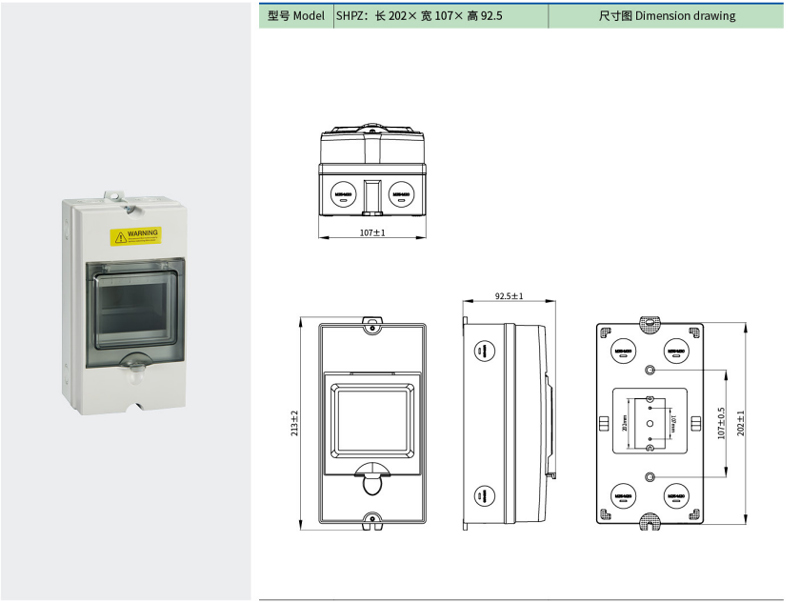

Model : SHPZ Series
If you need a customized distribution box, come to SelHot. From design to testing, you can customize your distribution box and get a customized solution that suits your power distribution needs.
Product Detail
Description:

Custom Distribution Boxes Summary

SelHot is a manufacturer and supplier of customized distribution boxes in China, providing you with distribution boxes suitable for you, which are widely used in various places, including industrial, household, solar protection systems, communications, circuit breaker distribution boxes, etc.



Custom Distribution Boxes PRODUCT PROPERTIES

Colour: RAL 7035
Type of cover: Cover
Transparent cover: Yes
Number of modules: 4 way
Number of rows: 1
Product accessories: DIN rail(s)
IP protection level: IP65
Impact protection class:IK09



Custom Distribution Boxes ENVIRONMENTAL CONDITION

Application area: Indoor/Outdoor installation
Maximum ambient temperature 24 h: 35 °C
Ambient temperature: -5 °C up to +40 °C
Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C



Custom Distribution Boxes ELECTRIC BOX PERFORMANCE


Rated voltage: Un = 400 V
Rated insulation voltage:Ui:690V
Protection class:II
Rated current (of the terminal):In = 75 A
N separable:No
conforming to the standards:EN 60670-1, DIN EN 60670-24



Custom Distribution Boxes MATERIAL CHARACTERISTICS

Material:ABS Shell / PC Door
According to IEC 60695-2-11 glow wire test temperature:650 °C
UL 94 Class:V-2
Temperature resistance:-25 °C up to +80 °C
Halogen-free:Yes
Silicone-free:Yes



Custom Distribution Boxes Characteristic

Suitable for special occasions such as waterproof, dustproof and anti-corrosion

Waterproof dustproof, with a protection level of lP65, UV resistant, and a scorching wire temperature of 650 ℃. Holes can be opened according to customer requirements, with complete specifications and convenient installation.
