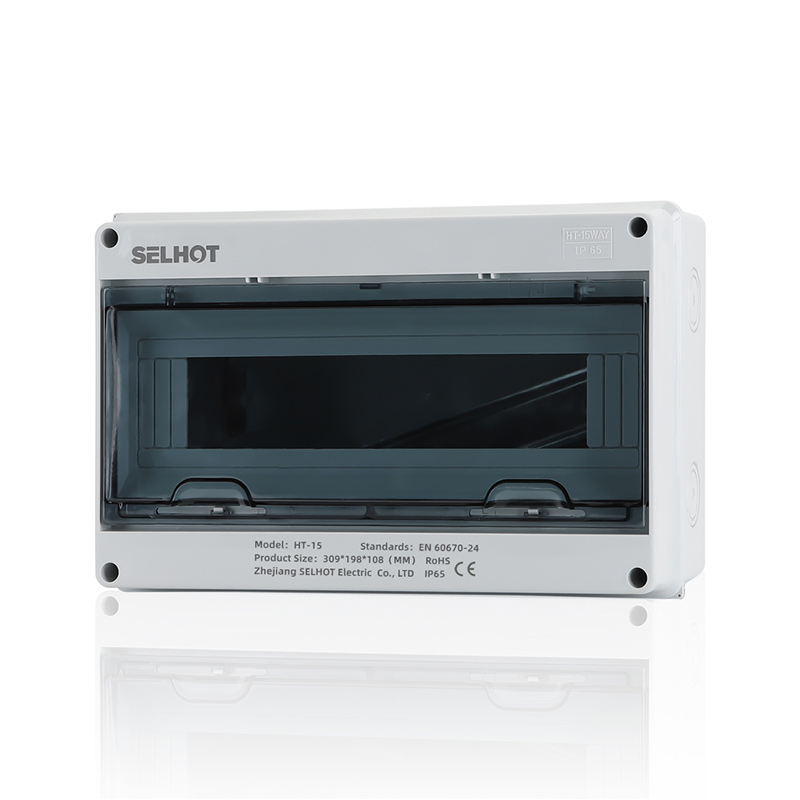

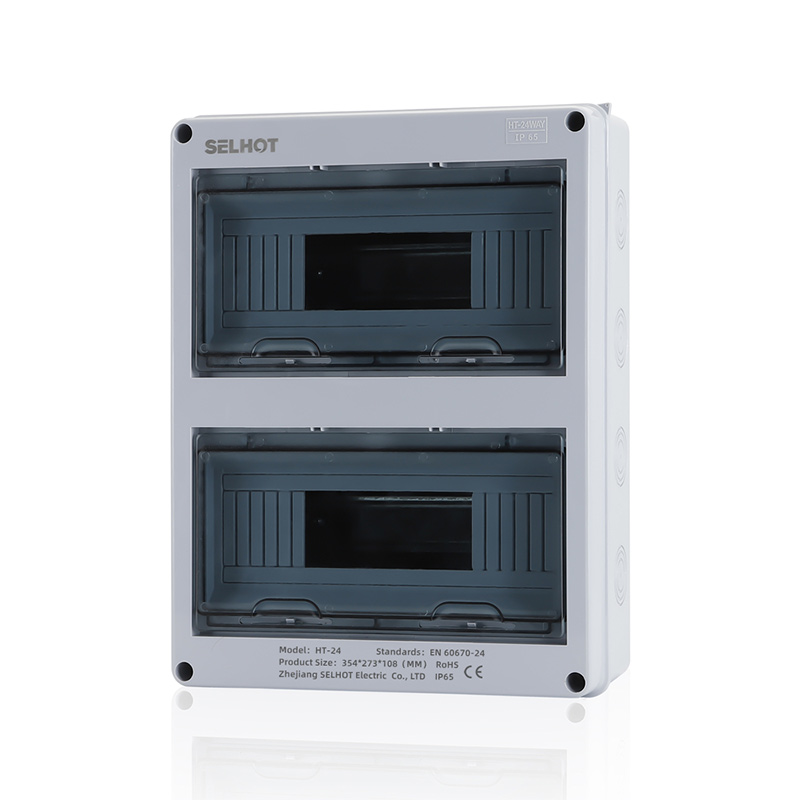

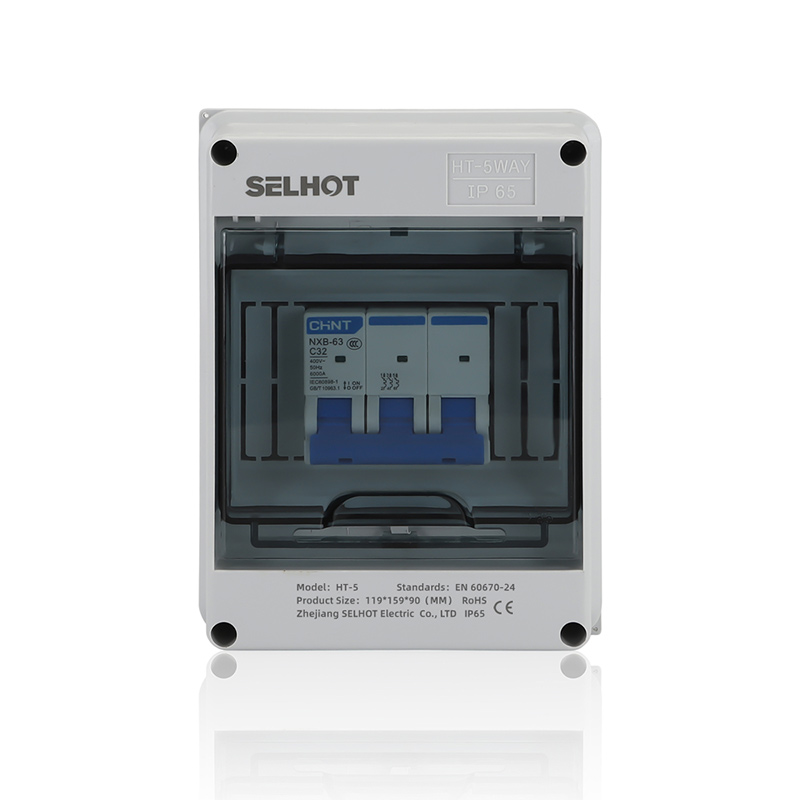

HT waterproof distribution box with beautiful appearance, anti-aging, no deformation, anti-impact, anti-static, anti-corrosion and other advantages.
Description:
For environments with high moisture resistance requirements, plastic distribution boxes may be more advantageous, because plastic is hardly affected by temperature or humidity; Iron products soaked in a humid environment for a long time, easy to rust or corrosion.
Colour: RAL 7035
Type of cover: Cover
Transparent cover: Yes
Number of modules: 4 way - 24 way
Number of rows: 1-2

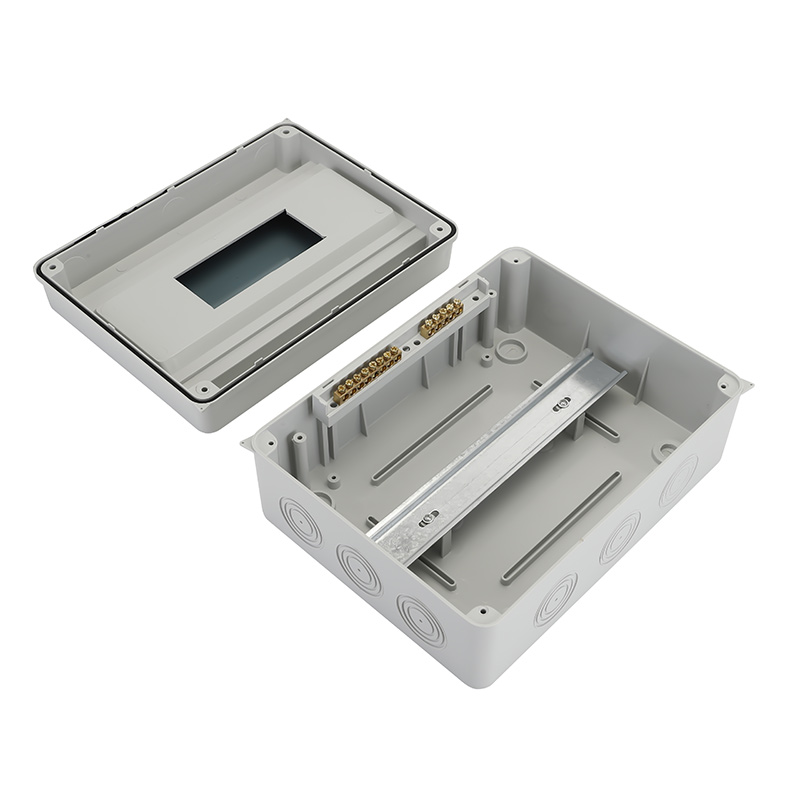

Product accessories: DIN rail(s),Grand joint,Copper terminal
IP protection level: IP65
Impact protection class：IK08
ENVIRONMENTAL CONDITION
Application area: Indoor/Outdoor installation
Maximum ambient temperature 24 h: 35 °C
Ambient temperature: -5 °C up to +40 °C
Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C
ELECTRIC BOX PERFORMANCE
Rated voltage: Un = 400 V
Rated insulation voltage：Ui:690V
Protection class:II
Rated current (of the terminal):In = 75 A
N separable:No
conforming to the standards:EN 60670-1, DIN EN 60670-24
MATERIAL CHARACTERISTICS
Material:ABS Shell / PC Door
According to IEC 60695-2-11 glow wire test temperature:650 °C
Temperature resistance:-25 °C up to +80 °C
Halogen-free:Yes
Silicone-free:Yes
