IP65 Distribution Box

Model : SHA Series
In IP65 Distribution Box, I stands for dustproof, level 6 means: completely prevent dust from entering, P stands for waterproof, and level 5 means: no harm will be caused by washing with water.
Product Detail
Description:

IP65 Distribution Box Introduction

IP65 rating is one of the common rating standards for outdoor distribution boxes. IP stands for International Protection Level (Ingress Protection), 65 means dust-proof level 6 and waterproof level 5. Distribution boxes of this grade are highly waterproof, can be used in outdoor environments, and can effectively prevent dust and water from entering.



IP65 Distribution Box MECHANICAL PROPERTIES

Colour: RAL 7035

Type of cover: Cover

Transparent cover: Yes

Number of modules: 4 way - 36 way

Number of rows: 1-3

Delivered accessories: DIN rail(s)

IP degree of protection: IP65

Mechanical collision protection class:IK09



IP65 Distribution Box AMBIENT CONDITIONS

Application area: Indoor/Outdoor installation

Maximum ambient temperature 24 h: 35 °C

Ambient temperature: -5 °C up to +40 °C

Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C



IP65 Distribution Box ELECTRICAL PROPERTIES

Rated voltage: Un = 400 V

Rated insulation voltage:Ui:690V

Protection class:II

Rated current (of the terminal):In = 75 A

N separable:No

Conforming to the standards:EN 60670-1, DIN EN 60670-24



IP65 Distribution Box MATERIAL PROPERTIES

Material:ABS Shell / PC Door

According to IEC 60695-2-11 glow wire test temperature:650 °C

UL 94:V-2

Temperature resistance:-25 °C up to +80 °C

Halogen-free:Yes

Silicone-free:Yes

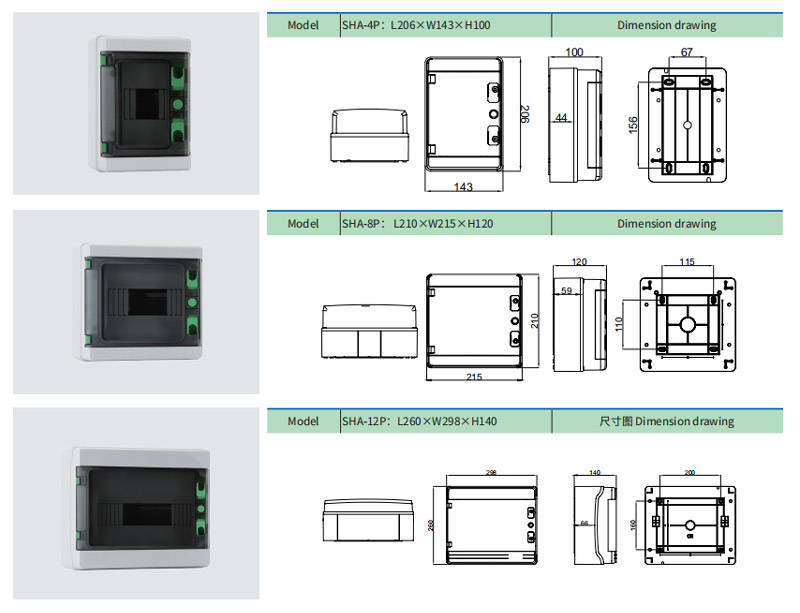

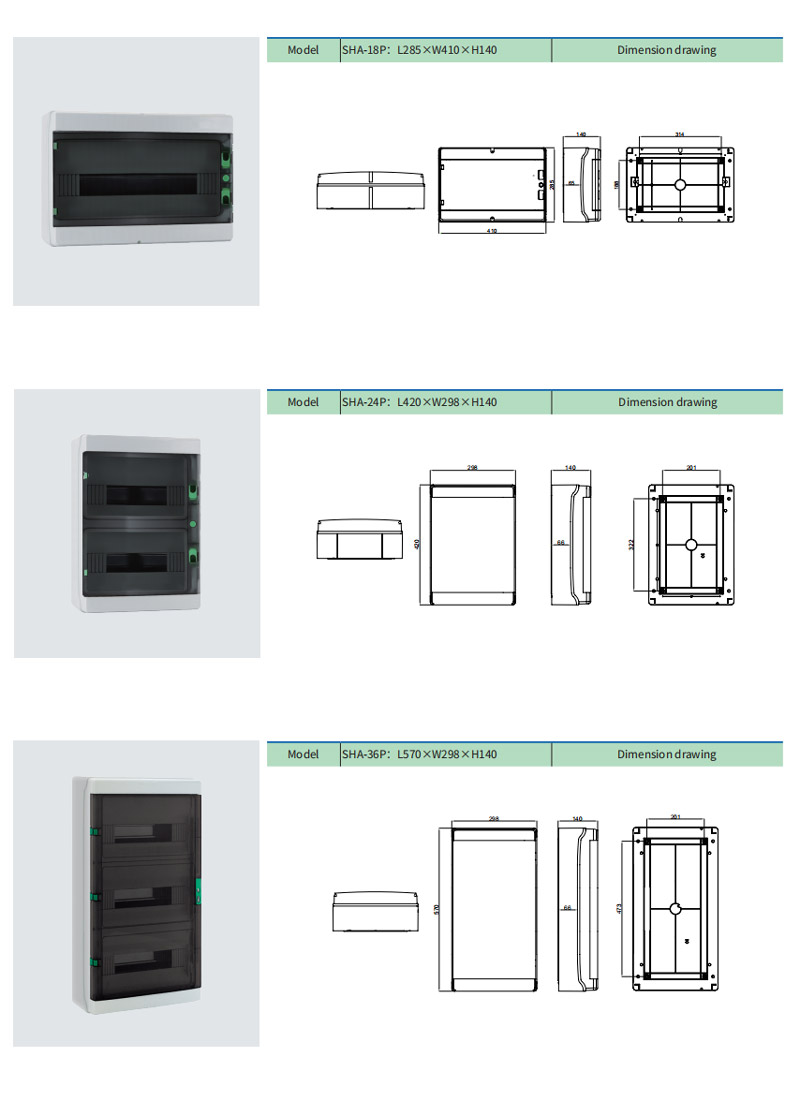

IP65 Distribution Box SHA Series Size

Model L W H
SHA4 142 205 97
SHA8 215 209 119

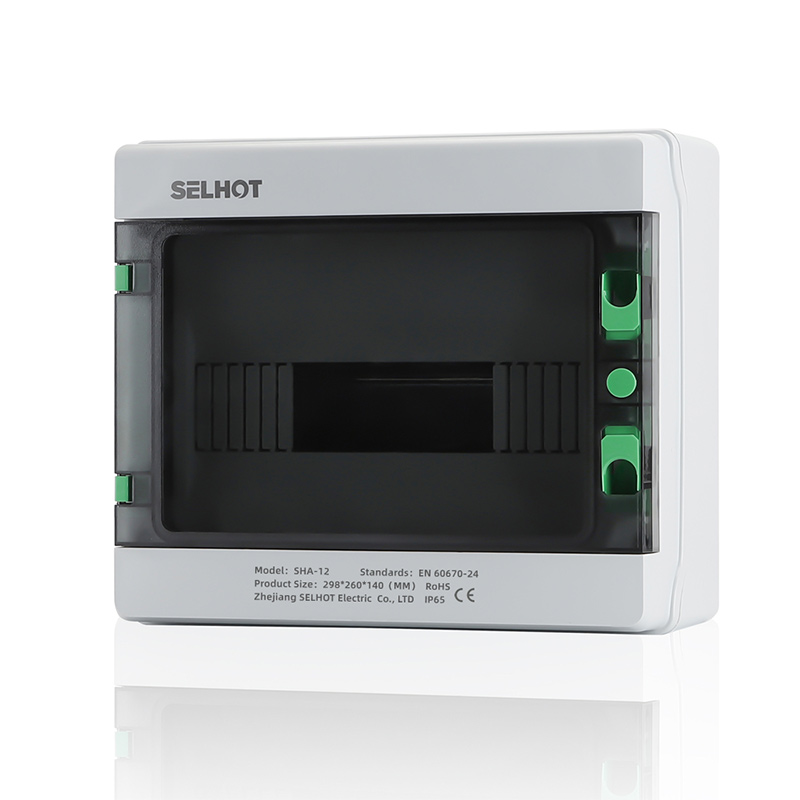

SHA12 296 256 140
SHA18 410 285 140

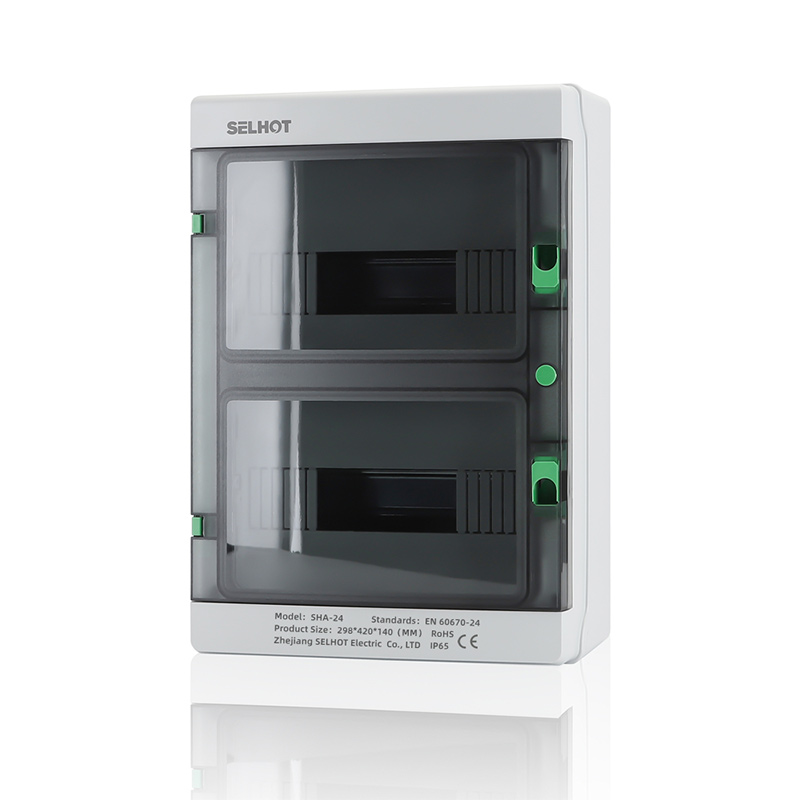

SHA24 298 420 140

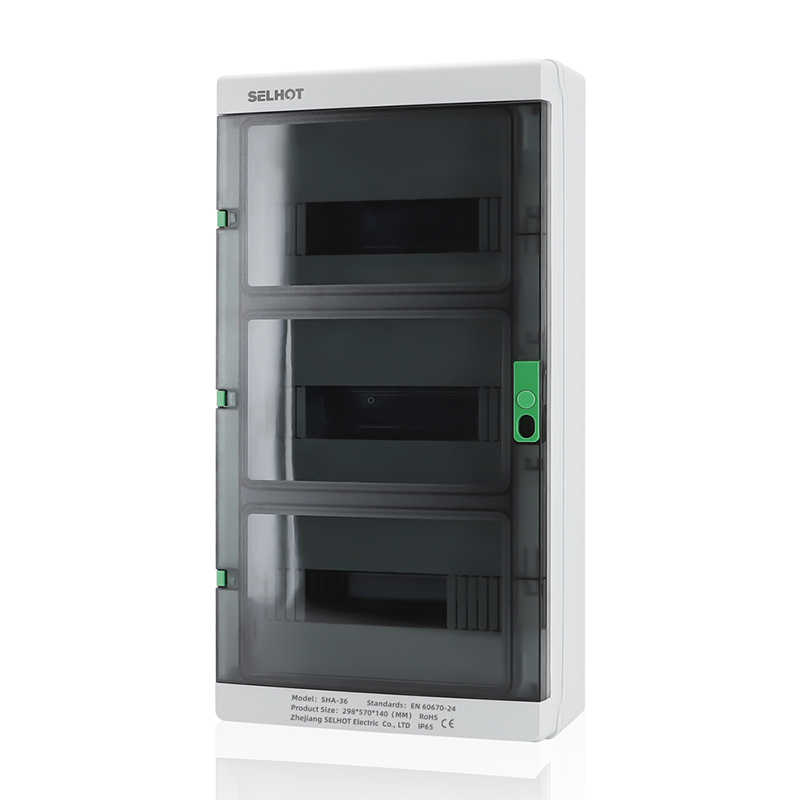

SHA36 298 570 140



The IP65 distribution box has the characteristics of small size, easy installation, fixed position, unique configuration and function, not subject to site restrictions, relatively common applications, stable and reliable operation, high space utilization, small footprint and environmental protection effect.
