10 enclosure families from 100×100 mm to 630×830 mm — hinged-lid IP66 weatherproof boxes, ABS/PC electronic junction enclosures, and terminal-ready models. One of four core lines on selhot.com; impact-resistant, UV-stable housings with custom knockout and OEM branding options.
Compact IP65 screw-down enclosures in flame-retardant ABS and UV-stabilized PC — rated 400V / 75A for wire splices, sensor housings, and terminal-ready outdoor installations. All series comply with EN 60670-1 and Class II double insulation.

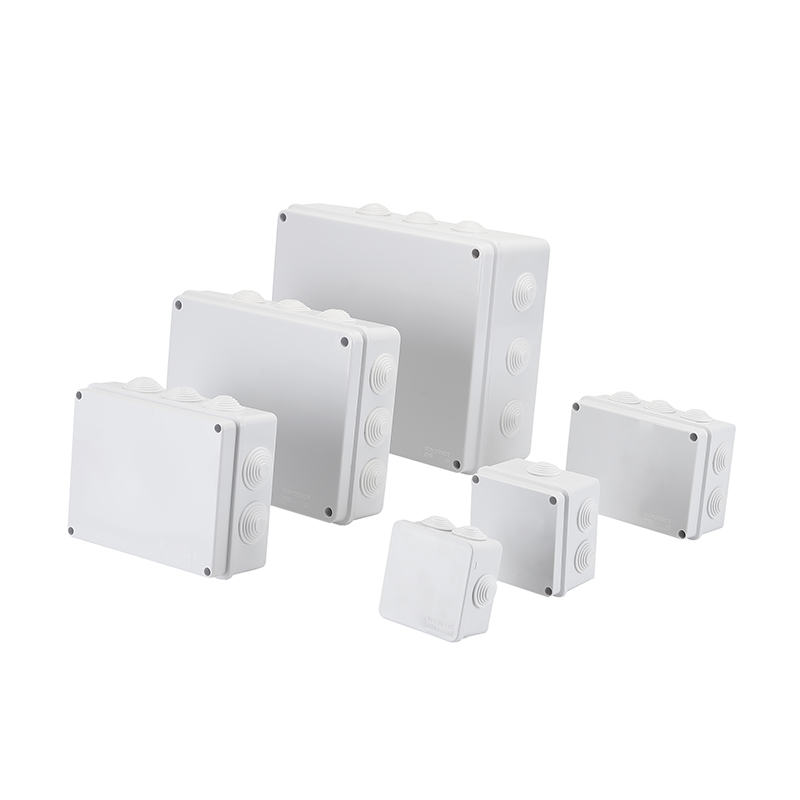

Flame-retardant ABS with pre-formed knockouts for M20/M25 cable glands. Cost-effective choice for indoor wiring points and control-panel junctions.

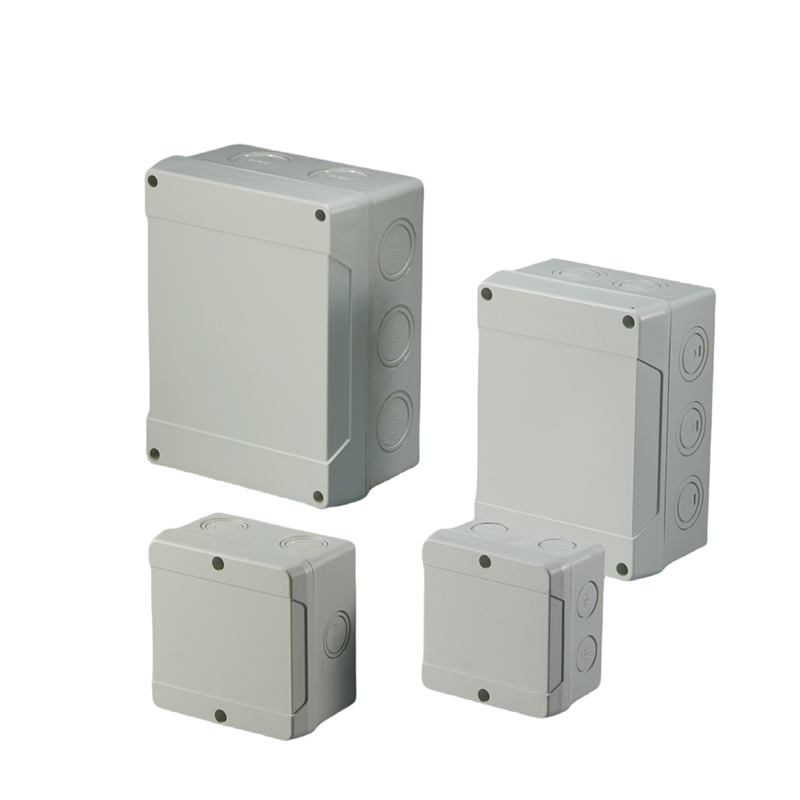

PC housing with terminal-ready layout for outdoor wall-mount splice points. 750°C glow-wire rated with IP65 dust-tight sealing.

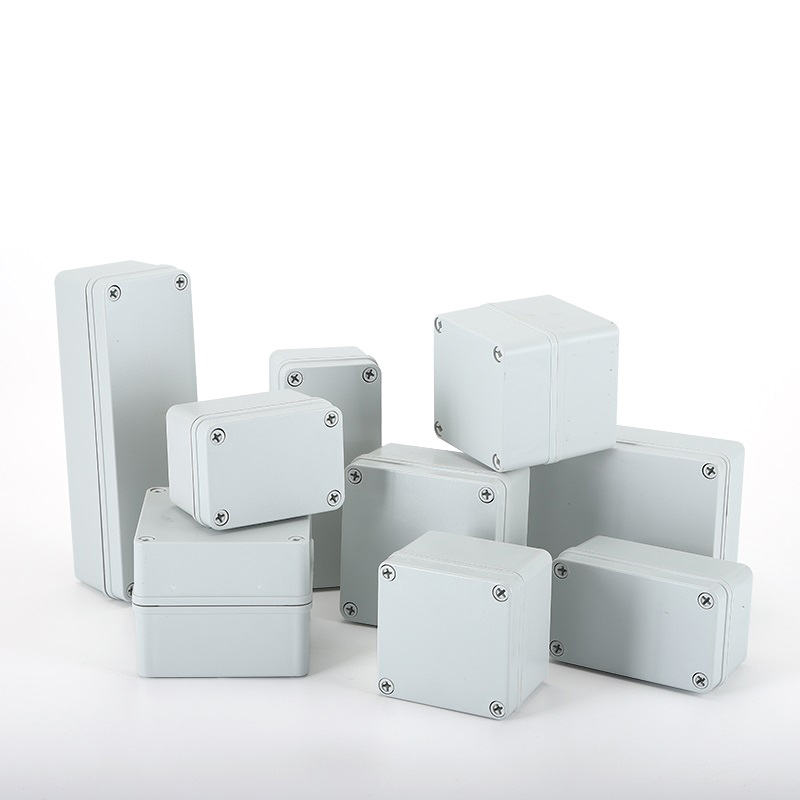

UV-stabilized polycarbonate for full outdoor exposure. Higher impact strength with custom dimensions and knockout positions for OEM projects.
Reference data for SELHOT weatherproof plastic junction boxes. Sizes from 100×100 mm to 630×830 mm with custom knockout positions, cable gland entries (M20/M25/M32) and terminal layouts available on request.
| Parameter | Specification |
|---|---|
| Housing Material | UV-stabilized PC (polycarbonate) / flame-retardant ABS |
| Ingress Protection | IP65 / IP66 (dust-tight, water-jet protected) |
| Impact Resistance | IK08 / IK09 (5 joule impact energy) |
| Flammability Rating | UL94 V-0 / V-2; glow-wire 650–750°C |
| Insulation Class | Class II / double insulation |
| Rated Voltage | Up to 400V AC (Ui 690V / 1000V on select models) |
| Rated Terminal Current | Up to 75A |
| Operating Temperature | -25°C to +80°C |
| Cover Type | Screw-down cover or hinged lid with seal gasket |
| Cable Entry | Pre-formed knockouts; M20/M25/M32 gland compatible |
| Certification | CE, RoHS, TUV; EN 60670-1 / DIN EN 60670-24 |
| L (mm) | W (mm) | H (mm) | Typical Use |
|---|---|---|---|
| 100 | 150 | 90 | Small splice / sensor housing |
| 125 | 175 | 90 | Terminal block enclosure |
| 160 | 210 | 100 | PLC / control module box |
| 200 | 300 | 130 | Outdoor lighting junction |
| 250 | 350 | 150 | PV string combiner housing |
| 330 | 430 | 180 | Industrial control panel |
| 430 | 530 | 200 | Heavy-duty external enclosure |
| 530 | 730 | 250 | Large instrument cabinet |
| 630 | 830 | 280 | Maximum size hinged enclosure |
| Property | PC (Polycarbonate) | ABS |
|---|---|---|
| UV Resistance | Excellent (UV-stabilized) | Good (indoor/shaded preferred) |
| Impact Strength | Very high (IK08+) | High |
| Temperature Range | -25°C to +85°C | -20°C to +70°C |

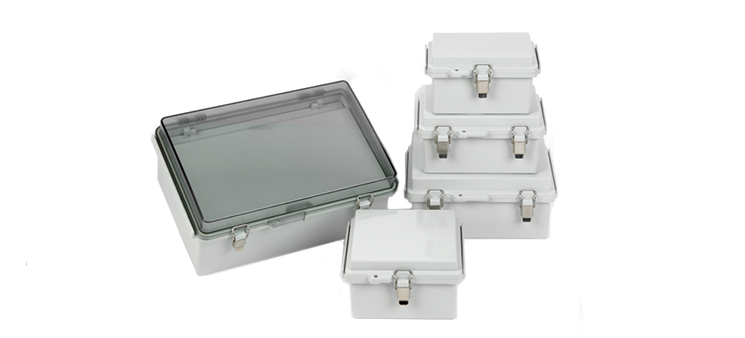

| Transparency Option | Yes (clear lids available) | No |
| Best For | Outdoor / solar / marine junction boxes | Indoor / cost-sensitive enclosures |
The first digit "6" means complete protection against dust ingress. The second digit "5" means protection against low-pressure water jets from any direction — ideal for outdoor lighting, irrigation and general weatherproof installs.
"6/6" adds protection against powerful water jets and heavy seas. Recommended for marine, washdown, high-exposure rooftop solar and any site facing driving rain or pressure cleaning.
Whether you need a standard IP66 hinged junction box or a fully customized electronic enclosure, SELHOT provides end-to-end OEM/ODM services — from arbitrary knockout drilling and cable gland placement to color matching and joint mold development.
-1505.webp)

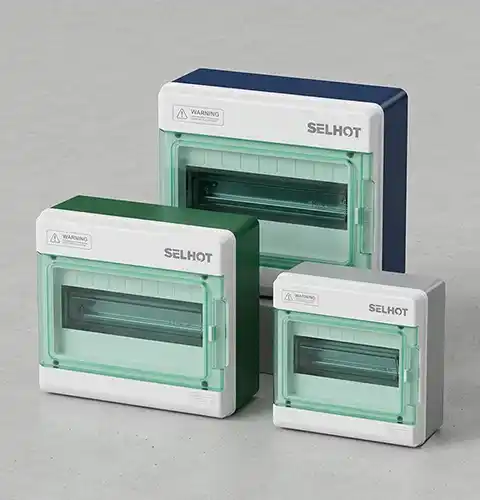

Match junction box shell colors to your brand or project palette. We support RAL color matching for ABS and PC housings — from standard grey (RAL 7035) to custom greens, blues and municipal colors for outdoor lighting and industrial control panels.
Custom color options ›-1505.webp)

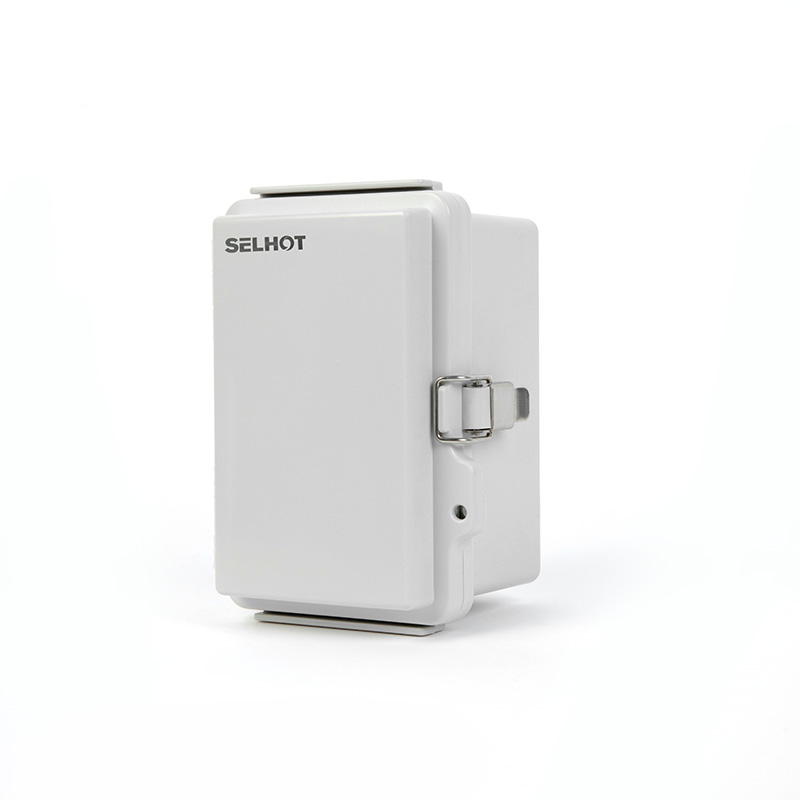

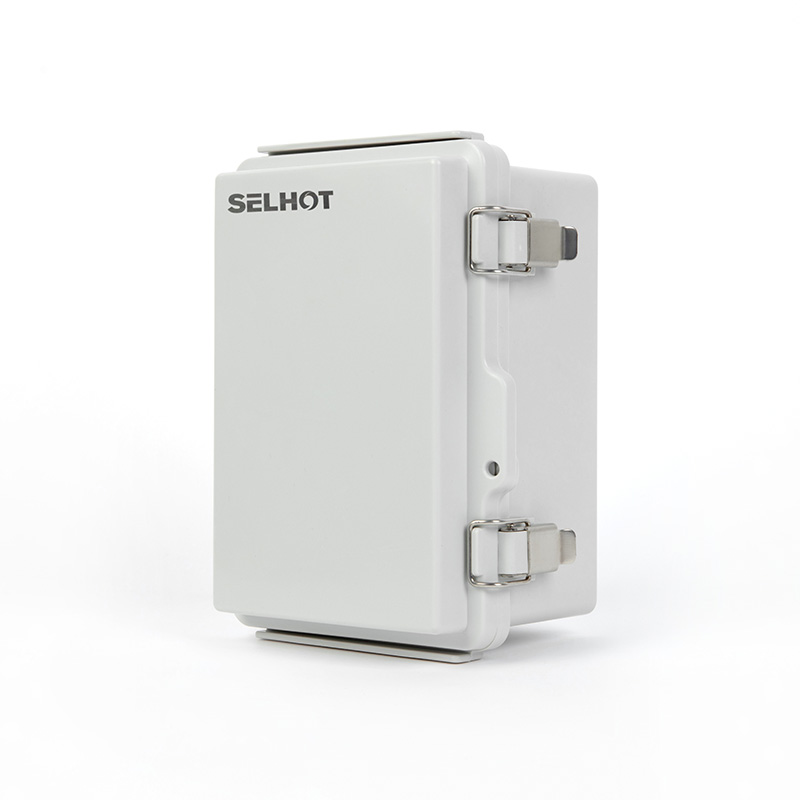

Standard SHK hinged enclosures from 100×100 mm to 630×830 mm. Custom L×W×H dimensions, wall thickness and internal mounting pillar layouts can be engineered for PLC modules, terminal blocks and cable routing requirements.
SHK size guide ›-1505.webp)
Choose from UV-stabilized polycarbonate (PC) or flame-retardant ABS housings with UL94 V-0/V-2 grades. PC suits outdoor, solar and marine exposure; ABS is cost-effective for indoor or shaded installs. Enhanced UV and corrosion protection available for coastal environments.
SHAG PC material options ›
Customize knockout hole positions, sizes and cable entry points to match your installation layout. SHQ3 and SHK series support removable knockouts or rubber plug options — or we pre-drill to your gland plate and conduit schedule (M20/M25/M32) at the factory.
SHQ3 knockout options ›-1505.webp)

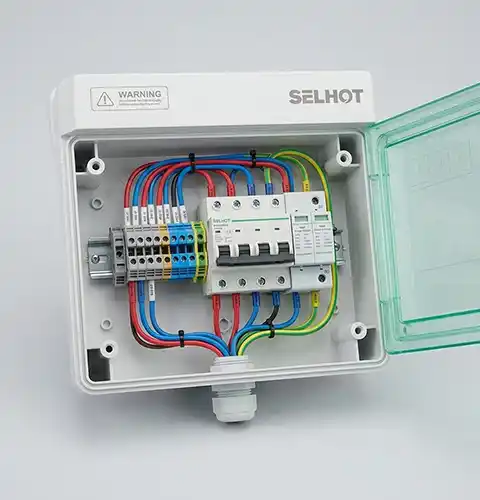

Surface and wall-mount junction boxes with integrated mounting pillars, DIN-rail brackets and pre-wired terminal blocks. Internal layouts can be configured for control wiring, PV combiner splices or instrument housing — rated up to 400V AC and 75A terminal current.
SHJK terminal mount options ›-1505.webp)
Full OEM branding including logo laser marking, silk-screen printing, custom data plates and neutral or branded packaging. Partner with our engineering team for private mold co-development — from concept sketch through tooling validation for exclusive junction box product lines.
Custom OEM junction boxes ›-1505.webp)

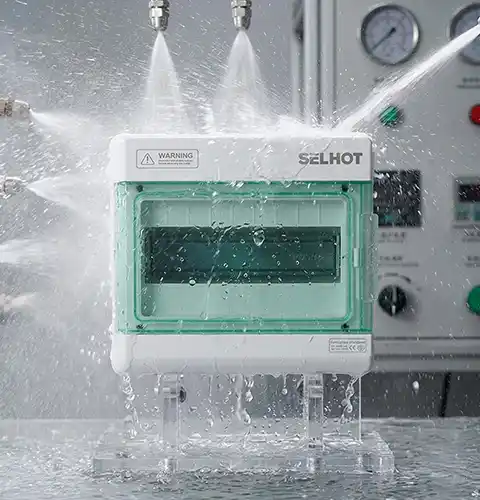

Select IP65 or IP66 ingress protection with IK08/IK09 impact ratings, tested per IEC 60529. IP65 suits general outdoor and control-panel installs; IP66 adds high-pressure jet protection for marine, washdown and rooftop solar. Hinged-lid SHK enclosures support 100×100 mm to 630×830 mm with custom gasket sealing.
IP66 outdoor junction boxes ›Six typical junction-box installs — splice housings, terminal-ready enclosures and hinged-lid cabinets — matched to the SHK, SHAG, SHJK and SHQ3 series that fit each duty, without padding the list to a fixed count.
-1516.webp)
Suitable

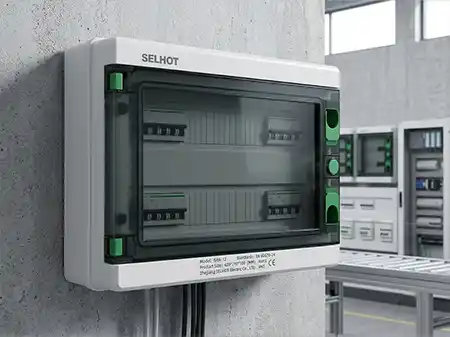

Spacious hinged-lid enclosures (100×100 to 630×830 mm) house PLC modules, relay boards and terminal blocks in factory automation. Integrated mounting pillars and gasket-sealed lids protect against dust ingress and washdown spray in production environments.
-1516.webp)
Highly Suitable

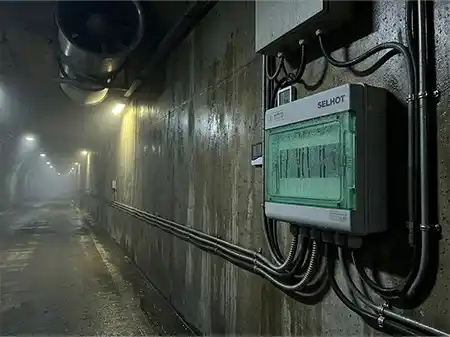

Designed for high-condensation and high-moisture underground environments. IP66 hinged junction boxes deliver dust-tight sealing for ventilation control splices and lighting circuit junctions, with wide temperature tolerance from -25°C to +80°C.
-1516.webp)
Highly Suitable

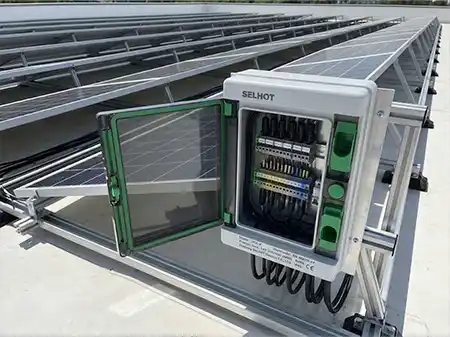

UV-resistant PC junction boxes (SHAG) and terminal-ready models (SHJK) protect PV string splices and inverter wiring on rooftops and ground-mount arrays. Large SHK hinged enclosures accommodate combiner layouts with custom knockout positions for conduit and cable gland entries.
-1516.webp)
Suitable

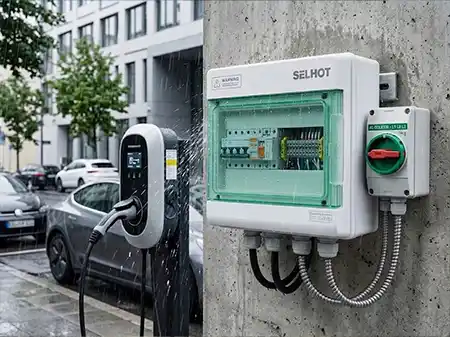

Weatherproof junction boxes protect feeder splices and control wiring at commercial EV charging hubs. IP66 hinged enclosures (SHK) withstand roadside exposure and washdown; pair with UKFA/B rotary isolators for safe AC disconnect during maintenance.
-1516.webp)
Suitable
Compact electronic junction boxes protect sensitive instrumentation from dust and moisture in process plants and laboratories. Fixed-structure terminals (SHJK) ensure stable wire connections; SHQ3 knockout options allow flexible cable entry for field-mounted sensors and transmitters.
-1516.webp)
Highly Suitable
Large-format hinged junction boxes protect telecom splices, network equipment and low-voltage data wiring in outdoor cabinets. Sizes up to 630×830 mm accommodate multiple cable entries with custom M20/M25/M32 gland positions for structured cabling projects.
SELHOT junction boxes are independently certified and validated through a full in-house test regime before every shipment.
Our SHK hinged-lid series covers standard dimensions from 100×150×90 mm up to 630×830×280 mm. SHAG, SHJK and SHQ3 electronic junction boxes are available in multiple compact sizes with custom L×W×H engineering on request for OEM projects.
Yes. We offer arbitrary knockout hole design, pre-drilled gland plate layouts and rubber-plug options on SHQ3 and SHK series. Cable gland sizes M20, M25 and M32 are supported. Factory pre-drilling to your conduit schedule saves on-site labor.
Choose UV-stabilized PC (SHAG) for outdoor, solar and marine environments where sunlight, impact and weather exposure are high. ABS (SHQ3) is a cost-effective option for indoor or shaded outdoor installations. We can advise on the best material once we know your site conditions.
Both are fully dust-tight per IEC 60529. IP65 protects against low-pressure water jets, suiting general outdoor and control-panel installs. IP66 adds protection against powerful high-pressure jets — recommended for marine, washdown and high-exposure rooftop applications.
SHJK and SHQ3 series feature fixed-structure internal terminals rated up to 75A at 400V. SHK hinged enclosures provide mounting pillars for user-installed terminal blocks, DIN-rail accessories and control modules. Pre-wired terminal configurations are available as OEM options.
Our junction boxes comply with EN 60670-1 and DIN EN 60670-24, and carry CE, RoHS and TUV certification. Production is managed under an ISO 9001 quality system. Test reports for IP, IK and flammability can be provided for import and project approval.
Samples are typically ready in 3–5 days. Stock items ship within 15 days; lead times for large or fully customized orders are confirmed at quotation based on volume and tooling.
MOQ depends on the model and level of customization and is confirmed at quotation. We support both OEM and ODM, including custom branding, packaging, knockout drilling and mold development for distributors and project buyers.
