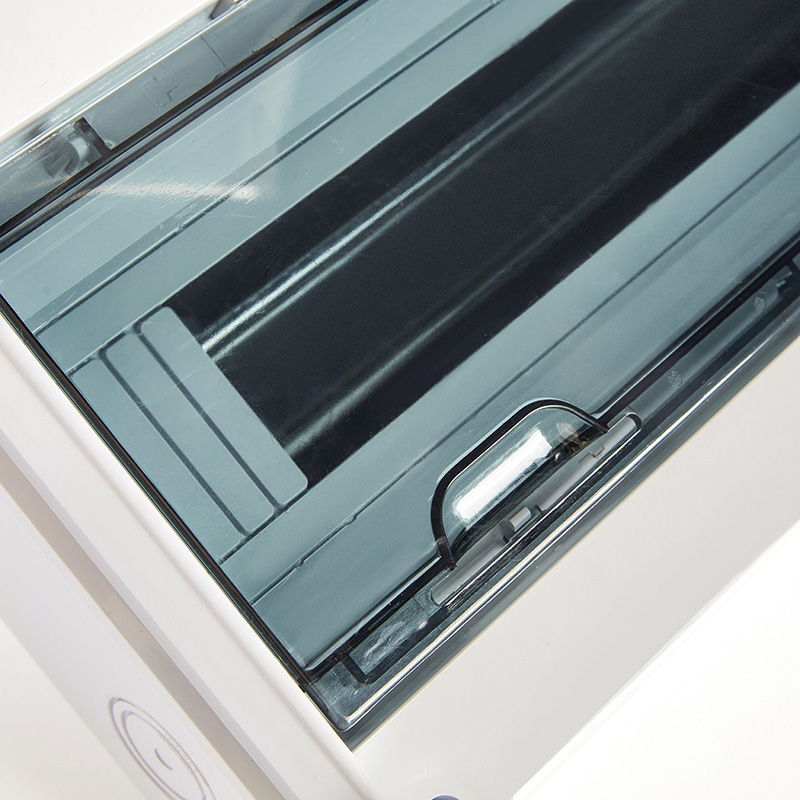

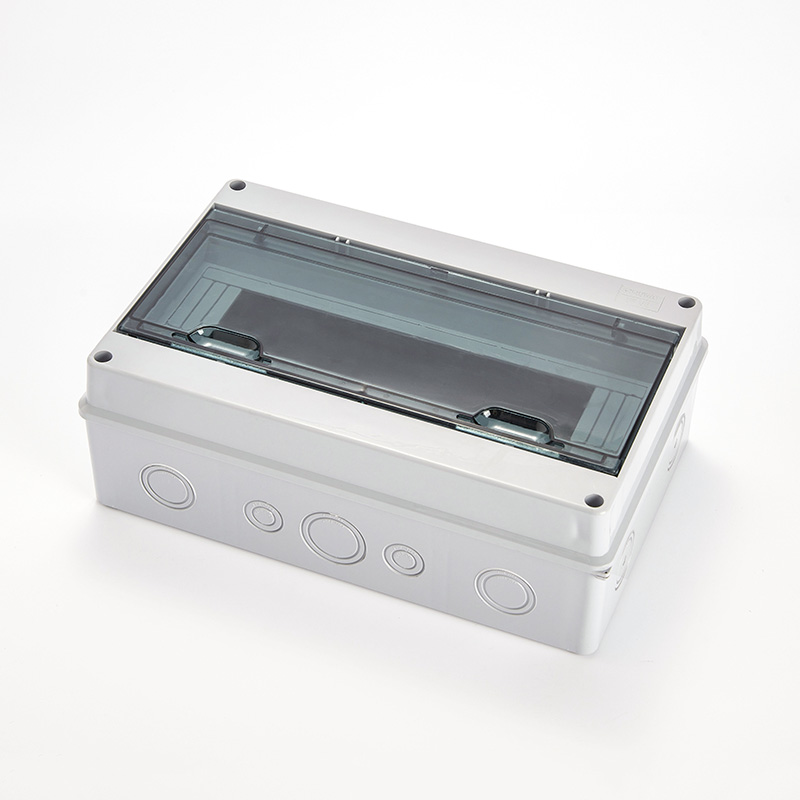

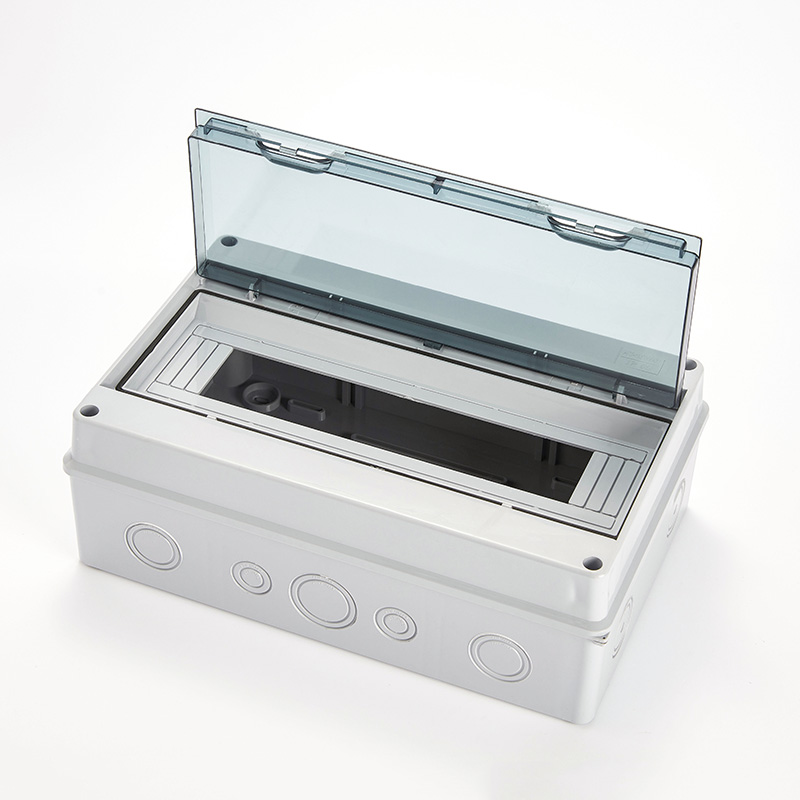

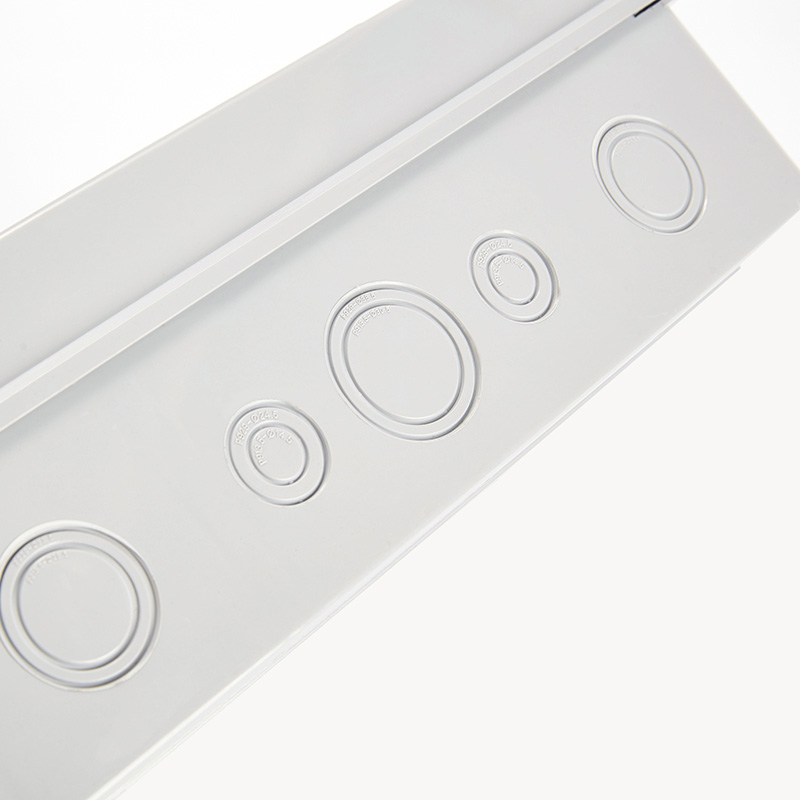

ABS Distribution Box

Model : SHT Series
We specialize in providing high-quality electrical enclosures that are designed to meet the diverse needs of our customers.
Product Detail
Description:

Our plastic distribution boxes are an invaluable asset in any electrical setup.   They offer a convenient solution by eliminating the need for each output device to be directly connected to the power supply.   This not only saves energy but also simplifies the circuit, ensuring efficiency and controlling power waste.



ABS Distribution Box PRODUCT PROPERTIES

Colour: RAL 7035

Type of cover: Cover

Number of modules: 2way-24way

Number of rows: 1-3

Product accessories: Mounting fittings

IP protection level: IP65

Impact protection class:IK09

Flame retardant: 650℃ (30s)



ABS Distribution Box ENVIRONMENTAL CONDITION

Application area: Indoor/Outdoor installation

Maximum ambient temperature 24 h: 35 °C

Ambient temperature: -5 °C up to +40 °C

Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C





ABS Distribution Box PERFORMANCE

Rated voltage: Un = 400 V

Rated insulation voltage:Ui:690V

Protection class:II

Rated current (of the terminal):In = 75 A

N separable:No

conforming to the standards:EN 60670-1, DIN EN 60670-24



ABS Distribution Box MATERIAL CHARACTERISTICS

Material:ABS Shell / PC Door

According to IEC 60695-2-11 glow wire test temperature:650 °C

UL 94 Class:V-2

Temperature resistance:-25 °C up to +80 °C

Halogen-free:Yes

Silicone-free:Yes



ABS Distribution Box APPLICATION SCENARIO

Metallurgy, steel, nuclear power plant, power plant, chemical industry, tunnel engineering, subway, charging pile, photovoltaic

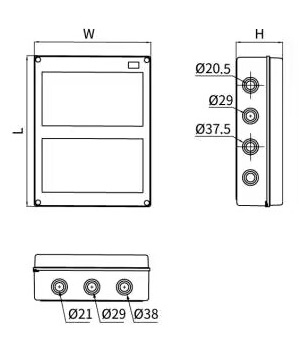

ABS Distribution Box Size

Model L W H Dimension drawing
SHT-2P 55 120 95
SHT-5P 119 159 90
SHT-8P 201 155 90
SHT-12P 255 198 108
SHT-15P 309 198 108
SHT-18P 363 198 108
SHT-24P 354 273 108
