Wall Mount Electric Distribution Box

Wall Mount Electric Distribution Box Summary

Wall-mounted installation is the most common installation method, and it is usually used for the installation of small distribution boxes. Wall-mounted distribution boxes are characterized by simple installation, small space occupation, and easy maintenance.

DC Circuit Breaker for BATTERY SYSTEMS

IP66 PC enclosure:UV resistance and flame retardant
1000V DC disconnect switch 4P 250A
1000V Type 2 DC surge arrester 3P  (type 1+2 for option)
1000V DC fuse holder finger safe touch
1000V LITTEL fuse 10A-30A finger safe touch

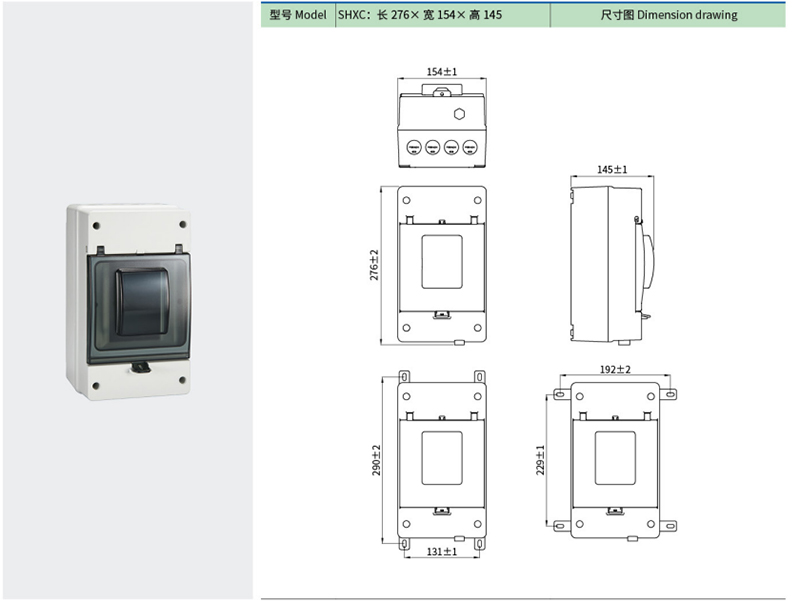

Wall Mount Electric Distribution Box PRODUCT PROPERTIES

Colour: RAL 7035
Type of cover: Cover
Transparent cover: Yes
Number of modules: 4 way
Number of rows: 1
Product accessories: DIN rail(s)
IP protection level: IP65
Impact protection class：IK09

Wall Mount Electric Distribution Box ENVIRONMENTAL CONDITION

Application area: Indoor/Outdoor installation
Maximum ambient temperature 24 h: 35 °C
Ambient temperature: -5 °C up to +40 °C
Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C

Wall Mount Electric Distribution Box ELECTRIC BOX PERFORMANCE

Rated voltage: Un = 400 V
Rated insulation voltage：Ui:690V
Protection class:II
Rated current (of the terminal):In = 75 A
N separable:No
conforming to the standards:EN 60670-1, DIN EN 60670-24

Wall Mount Electric Distribution Box MATERIAL CHARACTERISTICS

Material:ABS Shell / PC Door
According to IEC 60695-2-11 glow wire test temperature:650 °C
UL 94 Class:V-2
Temperature resistance:-25 °C up to +80 °C
Halogen-free:Yes
Silicone-free:Yes

Wall Mount Electric Distribution Box Characteristic

Suitable for special occasions such as waterproof, dustproof and anti-corrosion
