Four isolator families from 16A to 125A — IEC 60947-3 compliant rotary load isolation switches in IP65/IP66 weatherproof enclosures. Padlockable handles, silver contacts and visible disconnect for EV charging, solar PV, heat pump and industrial maintenance (LOTO).
Surface-mount rotary isolator switches in flame-retardant PC/ABS housings — rated 20A/35A/63A at 250V/440V with 1P–4P pole options. Round or slim handle, neon indicator and padlockable OFF position for safe maintenance per IEC 60947-3 AC-23A.
Matte PC housing with round or slim rotary handle and silver contacts. Padlockable visible disconnect for outdoor EV charger and heat pump isolator installs.
Flame-retardant PC/ABS enclosure with neon indicator and corrosion-resistant polycarbonate body. Designed for AC circuit switching during construction and maintenance.
Compact 86×86 mm cube isolator in UV- and corrosion-resistant polycarbonate. Single and double pole models for tight wall spaces and indoor/outdoor sub-distribution.

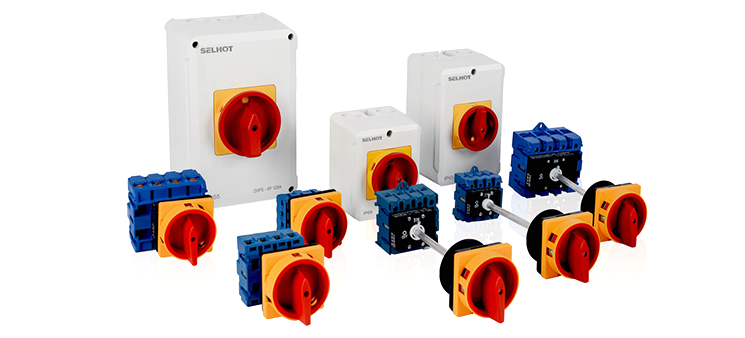

Polycarbonate enclosed rotary isolators from 16A to 125A — tested beyond 10,000 cycles for solar PV, motor control and power-supply switching applications.
Reference data for SELHOT IEC 60947-3 rotary isolator switches. Current ratings from 16A to 125A with 1P–5P pole configurations, padlockable handles and IP65/IP66 weatherproof enclosures for outdoor disconnect applications.
| Parameter | Specification |
|---|---|
| Standard Compliance | IEC 60947-3 switch-disconnector / isolator; AC-23A utilization category |
| Housing Material | UV-stabilized PC (polycarbonate) / flame-retardant ABS |
| Ingress Protection | IP65 / IP66 (dust-tight, water-jet protected enclosures) |
| Contact Material | Silver contact points for reliable make/break |
| Flammability Rating | Glow-wire 750–850°C (30 s); UL94 V-0 grades on select housings |
| Rated Voltage | 250V AC (1P/2P) / 440V AC (3P/4P) |
| Rated Current | 16A to 125A depending on series |
| Pole Configuration | 1P, 2P, 3P, 4P and 5P (SHP series) |
| Operating Temperature | -25°C to +40°C (UKF4); extended range on UKFA/B and SHP |
| Safety Features | Visible disconnect, padlockable OFF position, rotary handle |
| Certification | CE, RoHS, TUV; tested per IEC 60947-3 |
| Series | Current (A) | Poles | Voltage | Typical Use |
|---|---|---|---|---|
| UKFA/B | 20 / 35 / 63 | 1P–4P | 250V / 440V | EV charger / heat pump isolator |
| UKF2 | 20 / 35 / 63 | 1P–4P | 250V / 440V | Outdoor AC disconnect with neon indicator |
| UKF4 | 16 / 20 / 25 / 32 | 1P / 2P | 250V | Compact wall-mount sub-circuit isolator |
| SHP | 16 – 125 | 2P–5P | 250V / 440V | Solar PV, motor and power switching |
| Feature | UKFA/B | UKF2 | UKF4 | SHP |
|---|---|---|---|---|
| IP Rating | IP65 | IP65 | IP66 | IP65 |
| Max Current | 63A | 63A | 32A | 125A |
| Handle Options | Round / slim | Standard rotary | Compact rotary | Heavy-duty rotary |
| Size (mm) | 81×168×83 | 83×174×89 | 86×86×86 | Enclosed load switch |
| Best For | EV / ASHP outdoor isolator | General weatherproof disconnect | Tight-space mini isolator | High-current PV / motor |
IP65 isolator enclosures (UKFA/B, UKF2, SHP) are fully dust-tight and resist low-pressure water jets — ideal for wall-mounted EV charger disconnects, heat pump isolators and general outdoor AC switching per IEC 60529.
UKF4 mini isolators rated IP66 add protection against powerful water jets in washdown, coastal and high-exposure installs where a compact cube footprint is required alongside full weatherproof sealing.
Whether you need a standard IP65 rotary isolator or a fully customized load isolation switch, SELHOT provides end-to-end OEM/ODM services — from current rating and pole configuration to handle type, padlock provision and private-label branding.
-1505.webp)
Match isolator enclosure colors to your brand or project palette. Standard RAL 7035 grey on UKFA/B, UKF2 and UKF4 series — with custom RAL matching for distributor private-label rotary isolator lines and municipal EV infrastructure projects.
Custom color options ›-1505.webp)
Select rated current from 16A to 125A and pole configurations from 1P through 5P. UKFA/B and UKF2 cover 20A/35A/63A at 440V; UKF4 offers compact 16A–32A; SHP handles high-load motor and PV switching up to 125A per IEC 60947-3 AC-23A.
SHP current range ›-1505.webp)
UKFA/B series offers round handle or slim handle options for different wall-space and aesthetic requirements. All series feature highly visible ON/OFF positions with clear disconnect indication for maintenance safety and LOTO compliance.
UKFA/B handle options ›-1700.webp)
Surface wall-mount isolators with included mounting fittings for EV charger feeds, heat pump circuits and outdoor distribution boards. Panel-mount and DIN-compatible configurations available as OEM options on SHP and UKF series.
UKF4 compact mount ›-1505.webp)
Padlockable OFF positions on UKFA/B, UKF2 and SHP series support Lockout/Tagout (LOTO) procedures during EV charger, solar inverter and motor maintenance. Visible disconnect confirms de-energized state before work begins.
Padlockable isolators ›-1505.webp)
Full OEM branding including logo laser marking, silk-screen printing, custom data plates and neutral or branded packaging. Partner with our engineering team for private mold co-development for exclusive rotary isolator product lines.
Custom OEM isolators ›-1505.webp)
Select IP65 or IP66 ingress protection tested per IEC 60529. IP65 suits standard outdoor EV and heat pump isolator installs; IP66 (UKF4) adds high-pressure jet protection for washdown and coastal exposure. All housings use UV-stabilized PC with glow-wire rated plastics.
IP66 UKF4 isolators ›Five installs that cover the full UKFA/B, UKF4 and SHP range — the amperage, pole count and IP rating buyers actually specify on EV, heat-pump, PV and motor-control jobs.
Highly Suitable
Wall-mounted beside the charger feed: UKFA/B (32A or 63A, 3P/4P, 440V) gives a padlockable OFF position and visible disconnect before inverter or pile service. Round or slim handle, 81×168 mm footprint — typical spec alongside SHPN outdoor MCB boards on commercial parking installs.
-1516.webp)
Highly Suitable
Within 1 m of the outdoor unit: UKFA/B 20A or 32A in 2P/3P (250V/440V) is the standard weatherproof isolator for heat pump commissioning and annual service. IP65 PC housing, silver contacts and padlockable handle meet the local requirement for a dedicated maintenance disconnect on the supply side.
-1516.webp)
Highly Suitable
SHP series (16A–63A, IP65 polycarbonate enclosure) is engineered for solar PV AC isolation — lab-tested beyond 10,000 rotation cycles for daily inverter shutdown during install and O&M. Handles smooth rotary switching on the AC output circuit; pair with SHA/SHPN combiner enclosures on the same site.
-1516.webp)
Highly Suitable
On motor control and distribution panels: SHP covers star-delta starting, power-supply switching, multi-tap winding reversal and ammeter/voltmeter circuit selection up to 125A. Built for repeated load-break duty under IEC 60947-3 AC-23A — the high-current option when UKFA/B (max 63A) is insufficient.
-1516.webp)
Highly Suitable
Where wall space is tight: UKF4 fits a 86×86×86 mm cube with IP66 sealing for washdown-prone plant rooms and local AHU/fan isolators. Rated 16A–32A, 1P/2P at 250V — UV- and corrosion-resistant PC for conductive dust environments (-25°C to +40°C per datasheet).
SELHOT isolation switches are independently certified and validated through a full in-house test regime before every shipment.
Our range covers 16A to 125A across four series. UKFA/B and UKF2 offer 20A, 35A and 63A at 440V with 1P–4P poles. UKF4 compact isolators cover 16A–32A at 250V. SHP heavy-duty load switches handle up to 125A for solar PV and motor applications.
Yes. UKFA/B, UKF2 and SHP series feature padlockable OFF positions for Lockout/Tagout (LOTO) procedures during EV charger, solar inverter and motor maintenance. The visible disconnect confirms de-energized state before work begins.
All SELHOT rotary isolators comply with IEC 60947-3 for switch-disconnectors with AC-23A utilization category. Enclosures are tested to IEC 60529 for IP65/IP66 ingress protection. CE, RoHS and TUV certification is available on request.
Both are fully dust-tight per IEC 60529. IP65 (UKFA/B, UKF2, SHP) protects against low-pressure water jets — ideal for EV charger and heat pump wall mounts. IP66 (UKF4) adds high-pressure jet protection for washdown and coastal installs in a compact cube enclosure.
Yes. UKFA/B and UKF2 IP65 rotary isolators (20A–63A, 2P/3P/4P) are widely specified for EV charger AC disconnect points. Padlockable handles meet maintenance safety requirements. Pair with SELHOT SHPN distribution boxes for complete outdoor feeder protection.
Our isolators comply with IEC 60947-3 and carry CE, RoHS and TUV certification. Production is managed under an ISO 9001 quality system. Test reports for IP, contact endurance and glow-wire can be provided for import and project approval.
Samples are typically ready in 3–5 days. Stock items ship within 15 days; lead times for large or fully customized orders are confirmed at quotation based on volume and tooling.
MOQ depends on the model and level of customization and is confirmed at quotation. We support both OEM and ODM, including custom branding, handle types, current ratings and mold development for distributors and project buyers.
