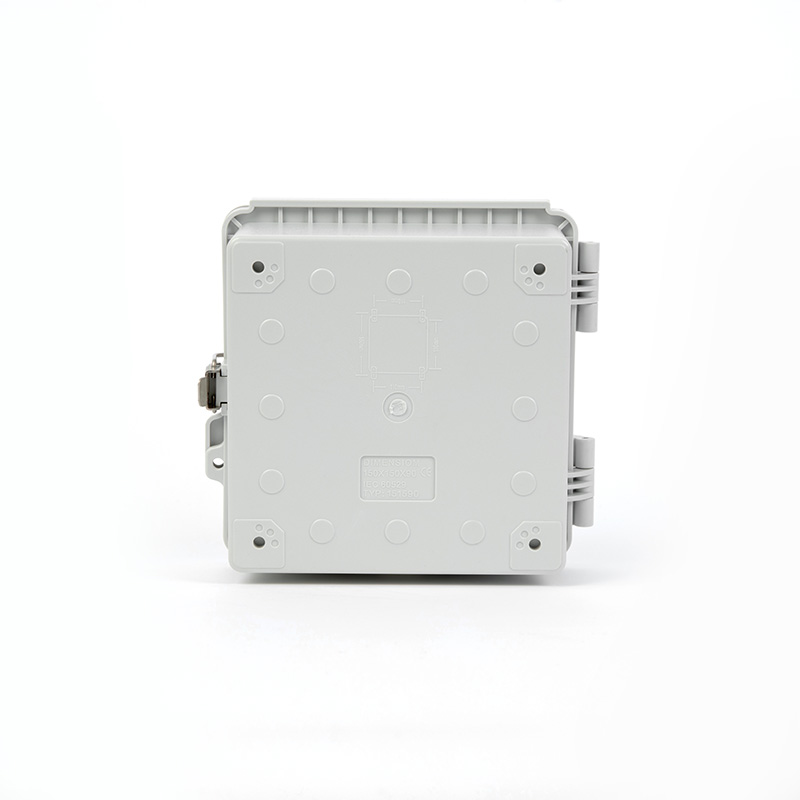

Waterproof Junction Boxes Electrical

Model : SHK-151509
We take pride in our ability to provide reliable and durable products that meet and exceed industry standards. Our plastic junction boxes are widely used in various industries, including electrical, telecommunications, and automation
Product Detail
Description:

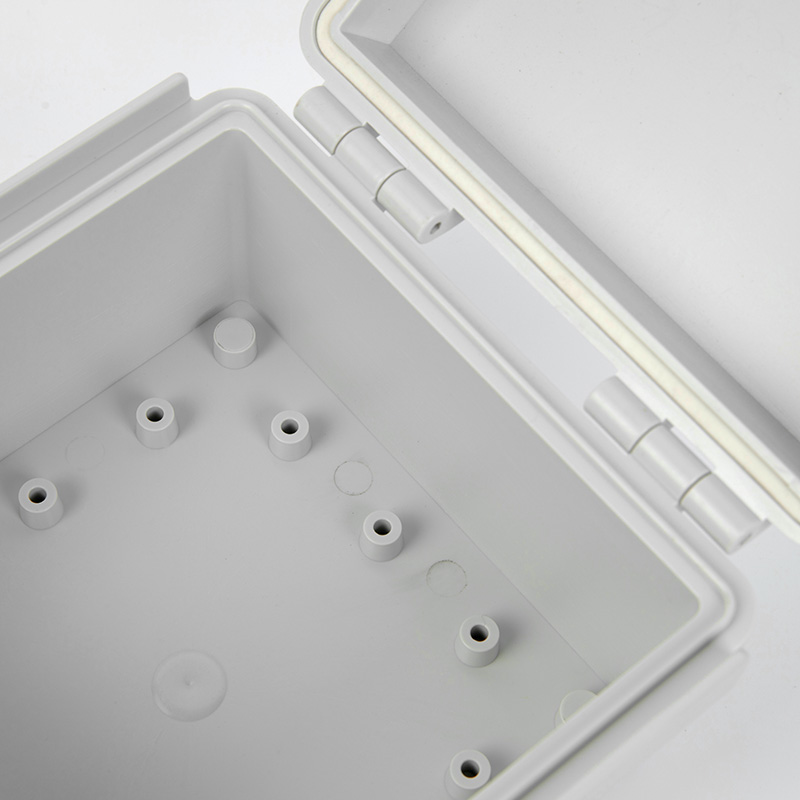

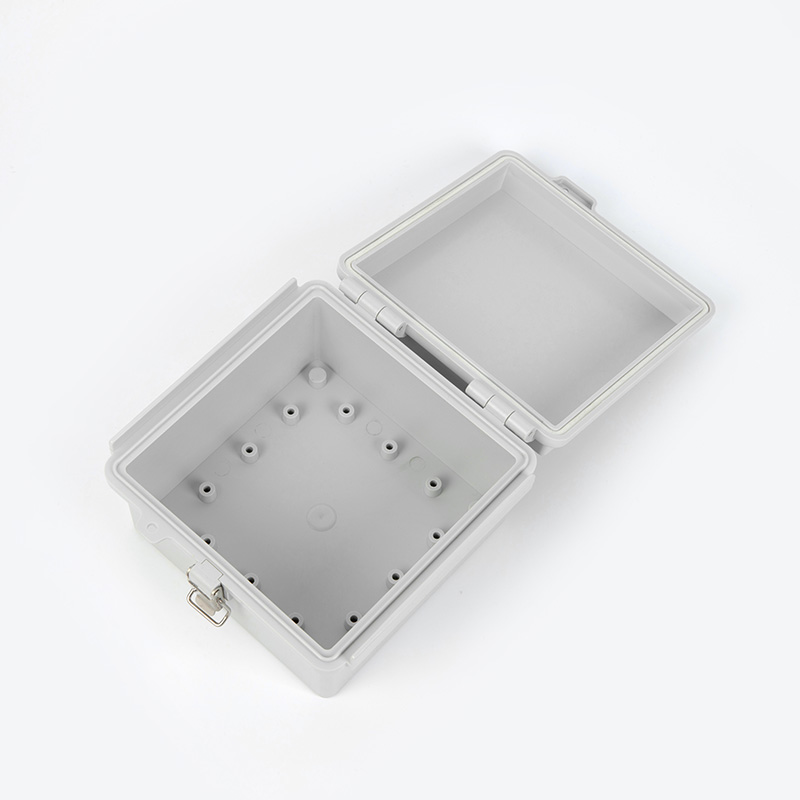

Our plastic junction boxes are designed with utmost precision and attention to detail.  They are available in two variants: transparent cover and non-transparent cover.  The shell of the junction box is crafted from new environmentally friendly PC material, ensuring durability and sustainability.  This material not only provides excellent protection for internal components but also contributes to our commitment to environmental responsibility.



Waterproof Junction Boxes Electrical SHK-151509 PRODUCT PROPERTIES

Colour: RAL 7035

Type of cover: Cover

Number of modules: 150*150*90

Number of rows: 1

Product accessories: Mounting fittings

IP protection level: IP66

Impact protection class:IK09

Flame retardant: 650℃ (30s)



Waterproof Junction Boxes Electrical SHK-151509 ENVIRONMENTAL CONDITION

Application area: Indoor/Outdoor installation

Maximum ambient temperature 24 h: 35 °C

Ambient temperature: -5 °C up to +40 °C

Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C



Waterproof Junction Boxes Electrical SHK-151509 PERFORMANCE

Rated voltage: Un = 400 V

Rated insulation voltage:Ui:690V

Protection class:II

Rated current (of the terminal):In = 75 A

N separable:No

conforming to the standards:EN 60670-1, DIN EN 60670-24



Waterproof Junction Boxes Electrical SHK-151509 MATERIAL CHARACTERISTICS

Material:ABS Shell / PC Door

According to IEC 60695-2-11 glow wire test temperature:650 °C

UL 94 Class:V-2

Temperature resistance:-25 °C up to +80 °C

Halogen-free:Yes

Silicone-free:Yes



Waterproof Junction Boxes Electrical SHK-151509 APPLICATION SCENARIO

Metallurgy, steel, nuclear power plant, power plant, chemical industry, tunnel engineering, subway, charging pile, photovoltaic



Waterproof Junction Boxes Electrical SHK-151509 Size

L W H Model
100 150 90
125 175 90
150 150 90
160 210 100
175 275 110
200 300 130
250 350 150
330 430 180
430 530 200
430 630 230
530 730 250
630 830 280
