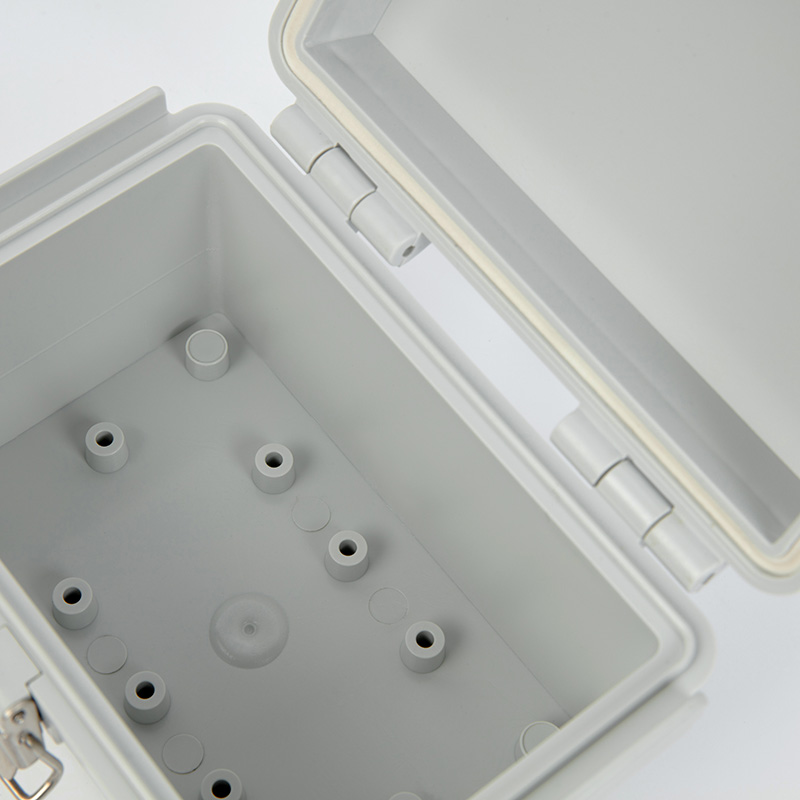

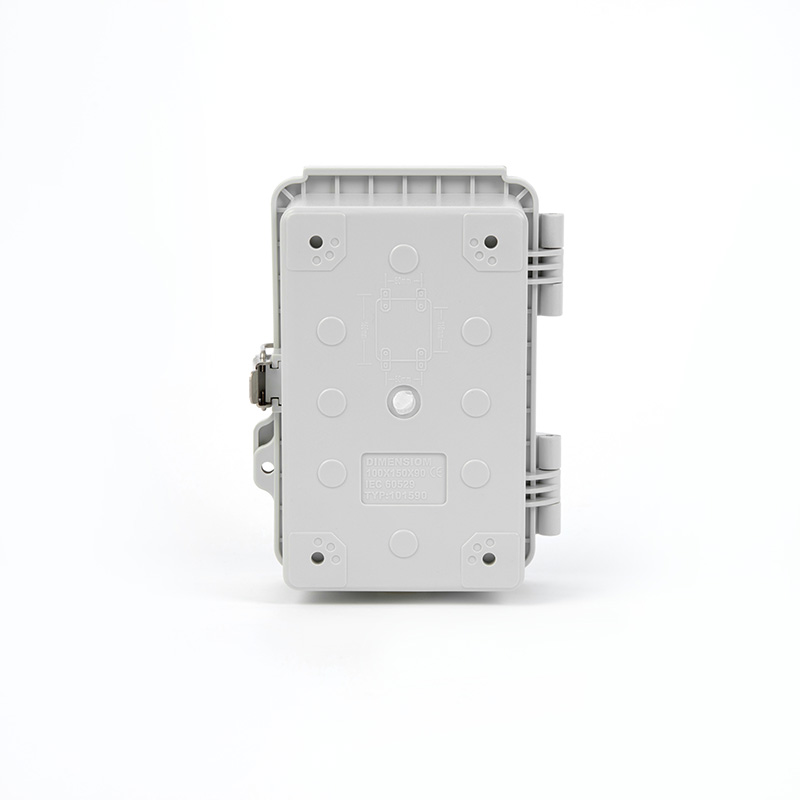

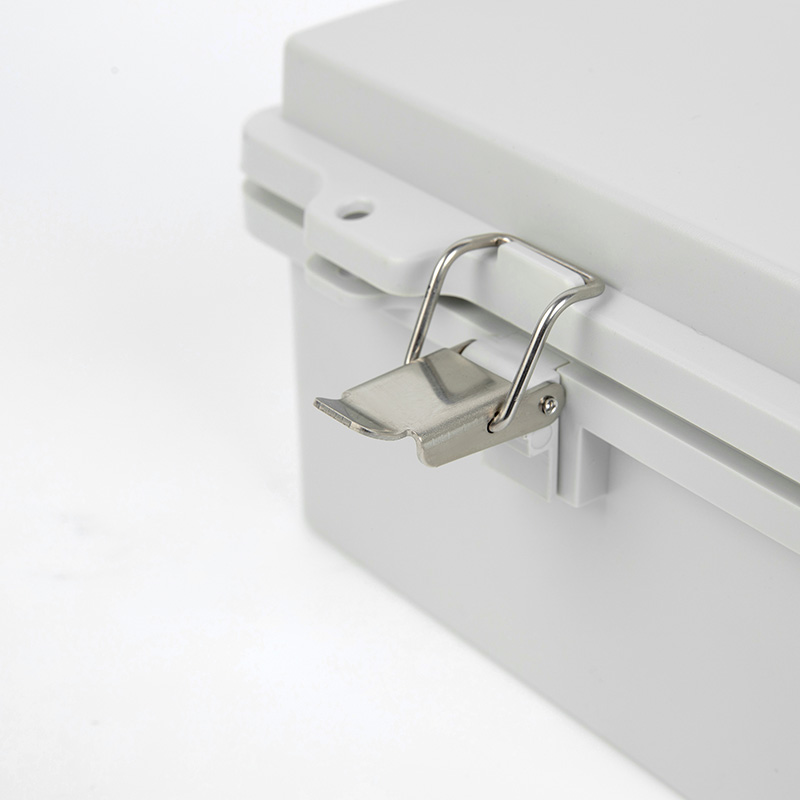

Outdoor IP66 Weatherproof Plastic Junction Box

Model : SHK-121709
Whether you require them for industrial, commercial, or residential applications, our products are designed to excel in diverse settings.
Product Detail
Description:

One of the key advantages of our junction boxes is their customization capability.  We understand that each customer has specific parameters and requirements.  Therefore, we offer tailored solutions to meet your exact needs.  Our streamlined production process enables us to deliver fast and efficient results, ensuring your customized junction boxes are produced and delivered promptly.



Outdoor IP66 Weatherproof Plastic Junction Box PRODUCT PROPERTIES

Colour: RAL 7035

Type of cover: Cover

Number of modules: 125*175*90

Number of rows: 1

Product accessories: Mounting fittings

IP protection level: IP66

Impact protection class:IK09

Flame retardant: 650℃ (30s)



Outdoor IP66 Weatherproof Plastic Junction Box ENVIRONMENTAL CONDITION

Application area: Indoor/Outdoor installation

Maximum ambient temperature 24 h: 35 °C

Ambient temperature: -5 °C up to +40 °C

Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C



Outdoor IP66 Weatherproof Plastic Junction Box PERFORMANCE

Rated voltage: Un = 400 V

Rated insulation voltage:Ui:690V

Protection class:II

Rated current (of the terminal):In = 75 A

N separable:No

conforming to the standards:EN 60670-1, DIN EN 60670-24



Outdoor IP66 Weatherproof Plastic Junction Box MATERIAL CHARACTERISTICS

Material:ABS Shell / PC Door

According to IEC 60695-2-11 glow wire test temperature:650 °C

UL 94 Class:V-2

Temperature resistance:-25 °C up to +80 °C

Halogen-free:Yes

Silicone-free:Yes



Plastic Weatherproof Electrical Box APPLICATION SCENARIO

Metallurgy, steel, nuclear power plant, power plant, chemical industry, tunnel engineering, subway, charging pile, photovoltaic



Outdoor IP66 Weatherproof Plastic Junction Box Size

L W H Model
100 150 90
125 175 90
150 150 90
160 210 100
175 275 110
200 300 130
250 350 150
330 430 180
430 530 200
430 630 230
530 730 250
630 830 280
