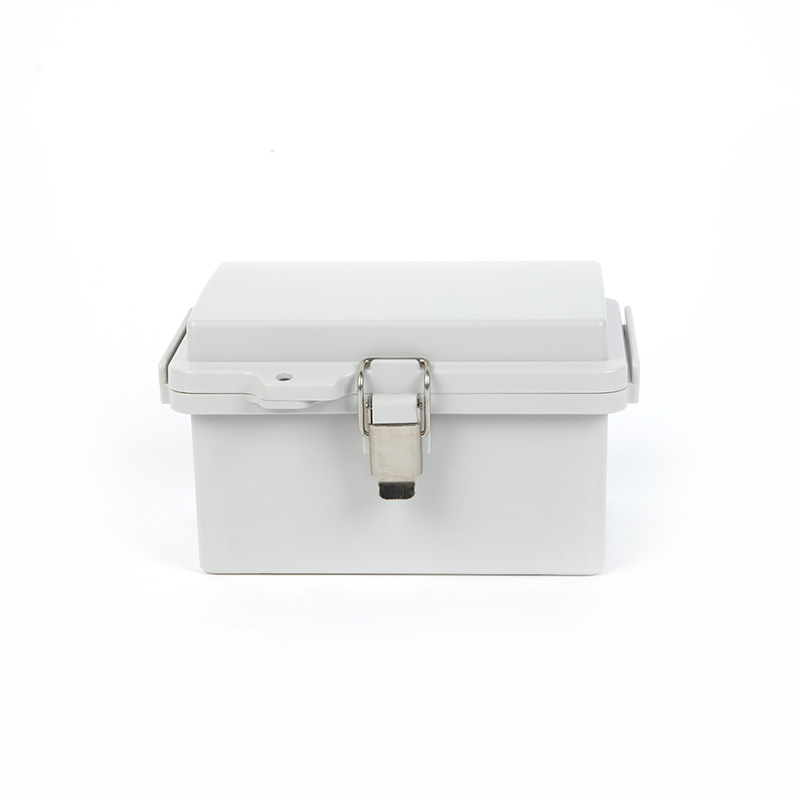

IP66 Waterproof External Electrical Junction Box

Model : SHK-211610

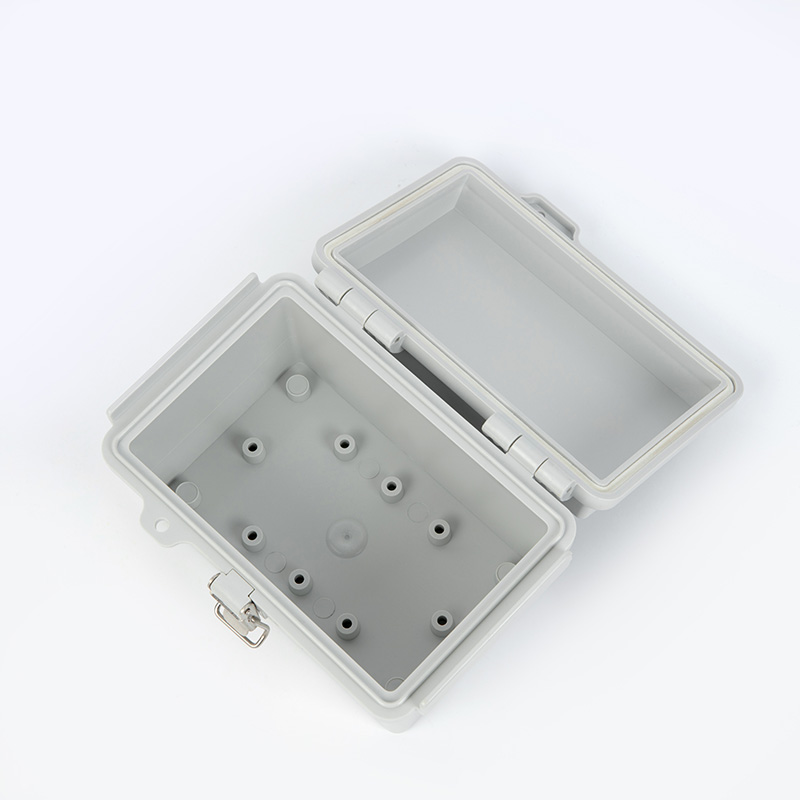

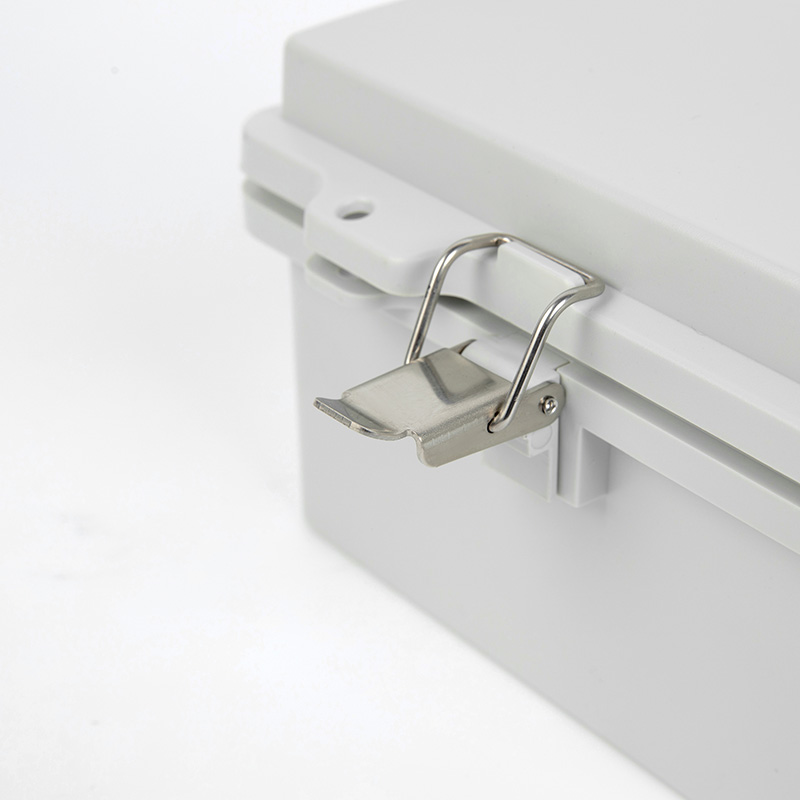

The clamshell design of our junction boxes allows for easy access to the internal wiring. The lid can be opened at any time, eliminating the need for troublesome screws and facilitating quick inspections and maintenance. This user-friendly design saves time and effort, ensuring a hassle-free experience for installers and technicians.
Product Detail
Description:

One of the key features of our junction boxes is their ability to handle larger loads.  They are perfectly equipped to withstand heavy-duty applications, making them an ideal solution for various industries.  Whether you have simple applications or complex electrical systems, our junction boxes offer a reliable and efficient solution.



IP66 Waterproof External Electrical Junction Box PRODUCT PROPERTIES

Colour: RAL 7035

Type of cover: Cover

Number of modules: 210*160*100

Number of rows: 1

Product accessories: Mounting fittings

IP protection level: IP66

Impact protection class:IK09

Flame retardant: 650℃ (30s)



IP66 Waterproof External Electrical Junction Box ENVIRONMENTAL CONDITION

Application area: Indoor/Outdoor installation

Maximum ambient temperature 24 h: 35 °C

Ambient temperature: -5 °C up to +40 °C

Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C



IP66 Waterproof External Electrical Junction Box PERFORMANCE

Rated voltage: Un = 400 V

Rated insulation voltage:Ui:690V

Protection class:II

Rated current (of the terminal):In = 75 A

N separable:No

conforming to the standards:EN 60670-1, DIN EN 60670-24



IP66 Waterproof External Electrical Junction Box MATERIAL CHARACTERISTICS

Material:ABS Shell / PC Door

According to IEC 60695-2-11 glow wire test temperature:650 °C

UL 94 Class:V-2

Temperature resistance:-25 °C up to +80 °C

Halogen-free:Yes

Silicone-free:Yes



IP66 Waterproof External Electrical Junction Box APPLICATION SCENARIO

Metallurgy, steel, nuclear power plant, power plant, chemical industry, tunnel engineering, subway, charging pile, photovoltaic



IP66 Waterproof External Electrical Junction Box Size

L W H Model
100 150 90
125 175 90
150 150 90
160 210 100
175 275 110
200 300 130
250 350 150
330 430 180
430 530 200
430 630 230
530 730 250
630 830 280
