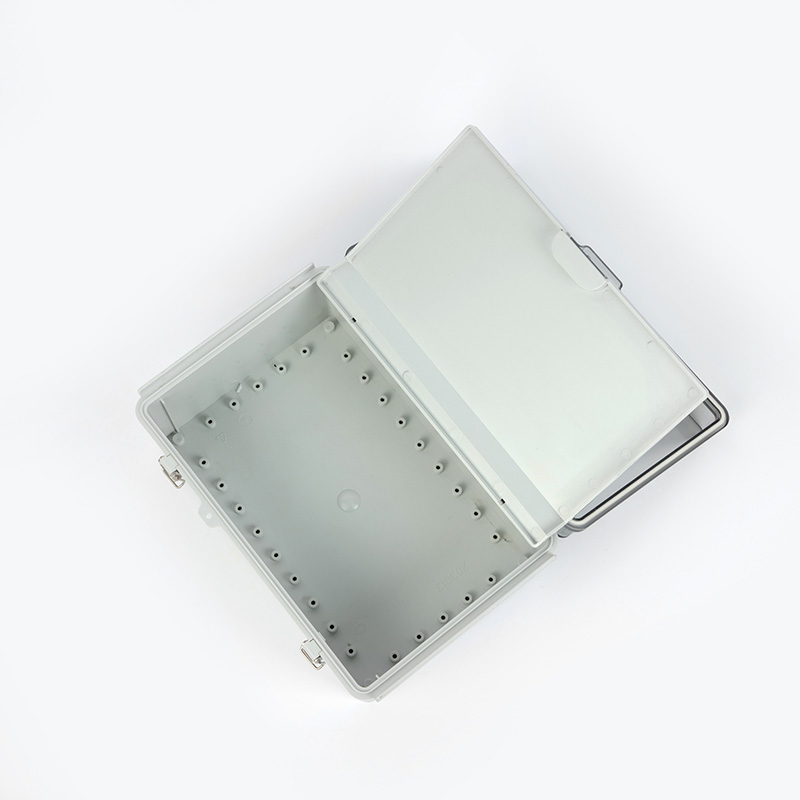

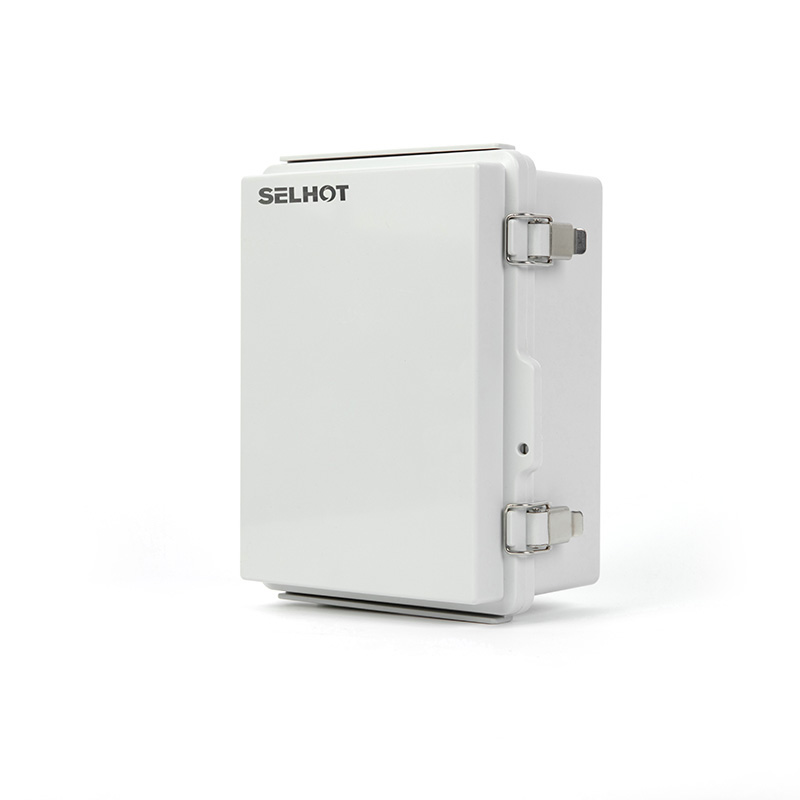

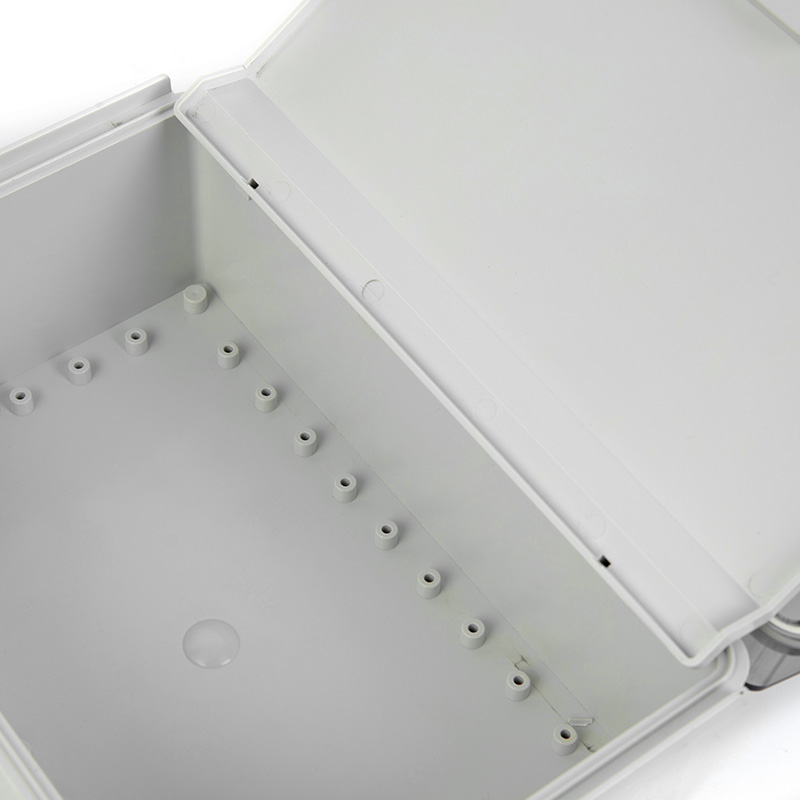

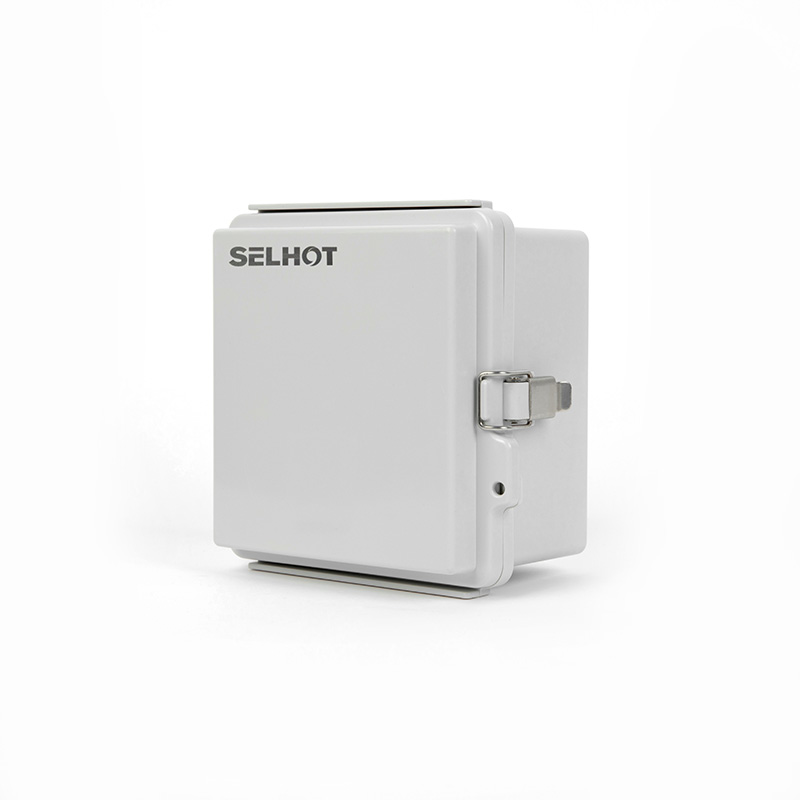

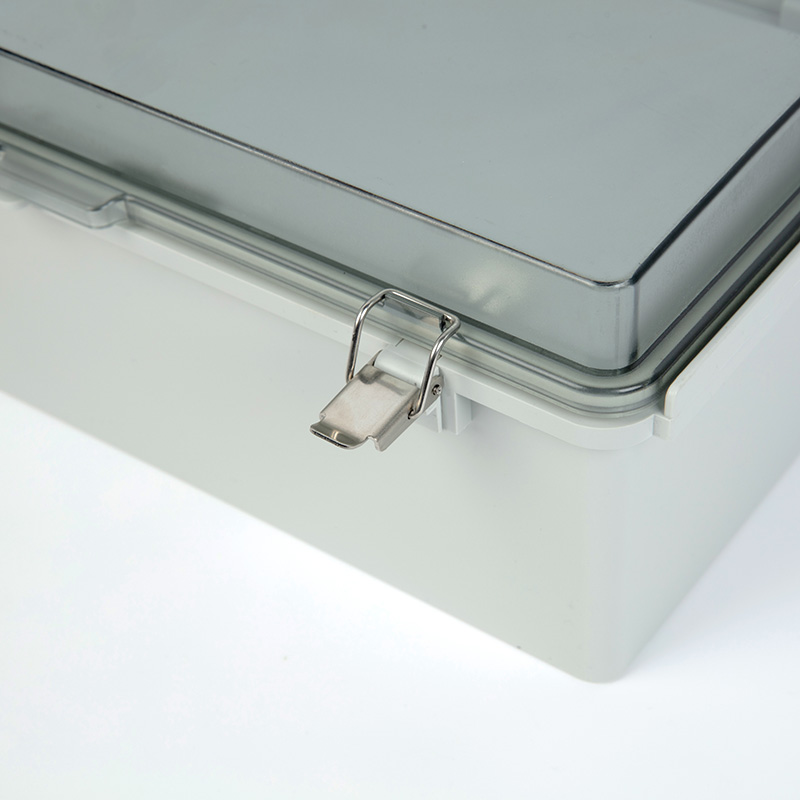

Junction Box With Hinged Door

Our plastic junction boxes are characterized by intelligent construction and attention to detail.  They are made of halogen-free thermoplastics, ensuring safety and environmental responsibility.  The use of high-quality materials results in reasonably thick walls, providing excellent durability and protection for internal components.

Junction Box With Hinged Door SHK-203013 PRODUCT PROPERTIES

Colour: RAL 7035

Type of cover: Cover

Number of modules: 125*175*90

Number of rows: 1

Product accessories: Mounting fittings

IP protection level: IP66

Impact protection class：IK09

Flame retardant: 650℃ （30s）

Junction Box With Hinged Door ENVIRONMENTAL CONDITION

Application area: Indoor/Outdoor installation

Maximum ambient temperature 24 h: 35 °C

Ambient temperature: -5 °C up to +40 °C

Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C

Junction Box With Hinged Door PERFORMANCE

Rated voltage: Un = 400 V

Rated insulation voltage：Ui:690V

Protection class:II

Rated current (of the terminal):In = 75 A

N separable:No

conforming to the standards:EN 60670-1, DIN EN 60670-24

Junction Box With Hinged Door SHK-203013 MATERIAL CHARACTERISTICS

Material:ABS Shell / PC Door

According to IEC 60695-2-11 glow wire test temperature:650 °C

UL 94 Class:V-2

Temperature resistance:-25 °C up to +80 °C

Halogen-free:Yes

Silicone-free:Yes

Junction Box With Hinged Door SHK-203013 APPLICATION SCENARIO

Metallurgy, steel, nuclear power plant, power plant, chemical industry, tunnel engineering, subway, charging pile, photovoltaic

Junction Box With Hinged Door SHK-203013 Size

L	W	H	Model
100	150	90
125	175	90
150	150	90
160	210	100
175	275	110
200	300	130
250	350	150
330	430	180
430	530	200
430	630	230
530	730	250
630	830	280
