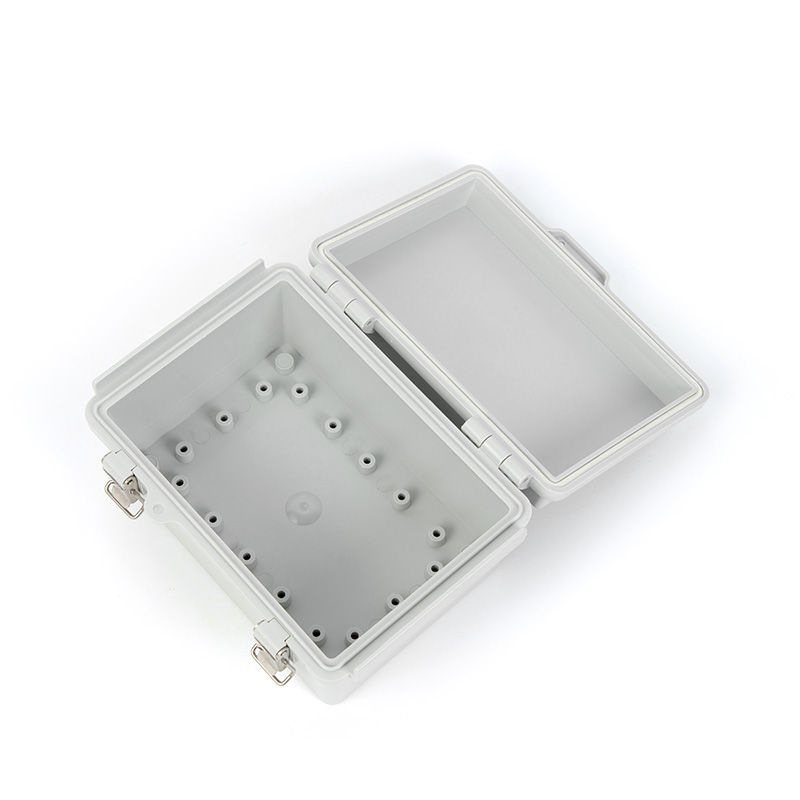

Waterproof And Dust-proof Plastic Hinged Junction Box

Model : SHK-101509
We offer the flexibility to customize our junction boxes to meet your specific needs.
Product Detail
Description:

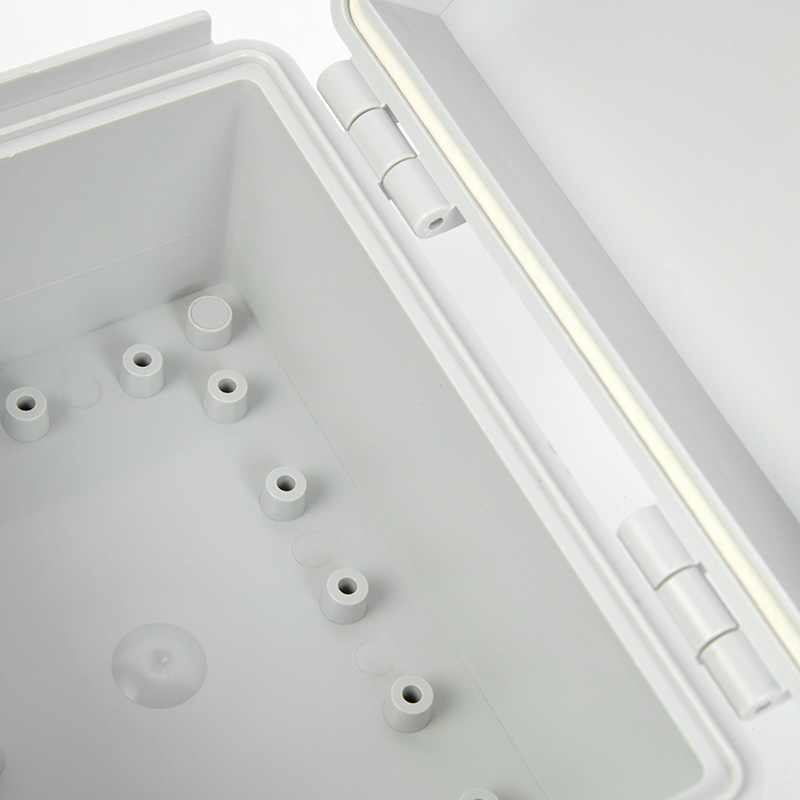

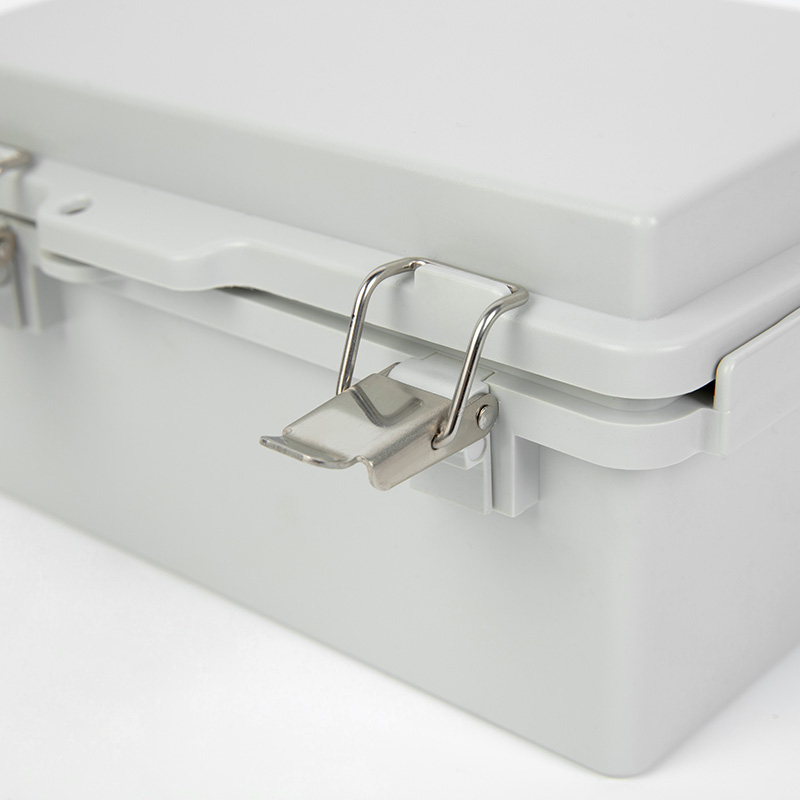

Our junction boxes feature a novel and unique appearance design that sets them apart from the competition.  The hinge lock is crafted from stainless steel, ensuring corrosion resistance and durability.  Additionally, our junction boxes are built to withstand impact, oxidation, and UV radiation, making them suitable for various environments.  They are also designed to be waterproof and dustproof, providing reliable protection for electrical components.



Waterproof And Dust-proof Plastic Hinged Junction Box PRODUCT PROPERTIES

Colour: RAL 7035

Type of cover: Cover

Number of modules: 100*150*90

Number of rows: 1

Product accessories: Mounting fittings

IP protection level: IP66

Impact protection class:IK09

Flame retardant: 650℃ (30s)



Waterproof And Dust-proof Plastic Hinged Junction Box ENVIRONMENTAL CONDITION

Application area: Indoor/Outdoor installation

Maximum ambient temperature 24 h: 35 °C

Ambient temperature: -5 °C up to +40 °C

Relative humidity: ≤ 50 % at 40 °C, ≤ 100 % at 25 °C



Waterproof And Dust-proof Plastic Hinged Junction Box PERFORMANCE

Rated voltage: Un = 400 V

Rated insulation voltage:Ui:690V

Protection class:II

Rated current (of the terminal):In = 75 A

N separable:No

conforming to the standards:EN 60670-1, DIN EN 60670-24



Waterproof And Dust-proof Plastic Hinged Junction Box MATERIAL CHARACTERISTICS

Material:ABS Shell / PC Door

According to IEC 60695-2-11 glow wire test temperature:650 °C

UL 94 Class:V-2

Temperature resistance:-25 °C up to +80 °C

Halogen-free:Yes

Silicone-free:Yes



Waterproof And Dust-proof Plastic Hinged Junction Box APPLICATION SCENARIO

Metallurgy, steel, nuclear power plant, power plant, chemical industry, tunnel engineering, subway, charging pile, photovoltaic



Waterproof And Dust-proof Plastic Hinged Junction Box Size

L W H Model
100 150 90
125 175 90
150 150 90
160 210 100
175 275 110
200 300 130
250 350 150
330 430 180
430 530 200
430 630 230
530 730 250
630 830 280
