The SELHOT outdoor plastic distribution box should be installed away from places that are susceptible to impact from external solid objects, strong vibrations, liquid splashes and heat sources, so that the distribution box can play a greater role.
| Model | L | W | H |  |
| SHA4 | 142 | 205 | 97 | |
| SHA8 | 215 | 209 | 119 | |
| SHA12 | 296 | 256 | 140 | |
| SHA18 | 410 | 285 | 140 | |
| SHA24 | 298 | 420 | 140 | |
| SHA36 | 298 | 570 | 140 |

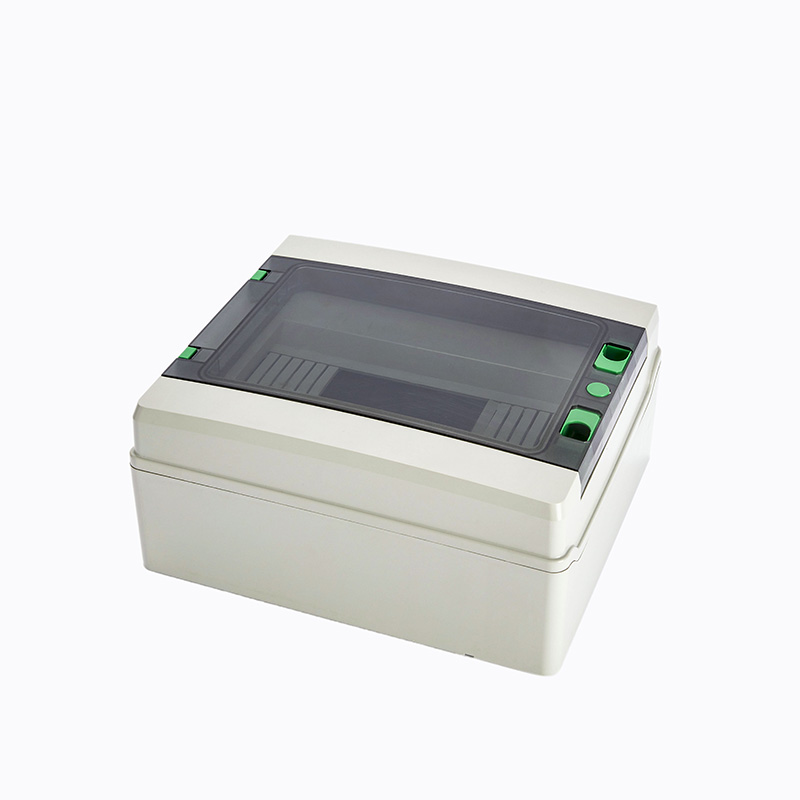

The SHA series of outdoor power distribution boxes is a multi-functional power distribution equipment suitable for indoor and outdoor environments. It is made of ABS shell and PC door material, with IP65 waterproof and dustproof and IK09 impact resistance. The SHA series provides 4 to 36 channels of modular design and can be flexibly configured to meet various power needs. It has a rated voltage of 400V, a rated current of 75A, is suitable for a temperature range of -5°C to +40°C, and has excellent moisture-proof performance. In addition, the SHA series has passed the UL 94 V-2 flame retardant grade test and uses halogen-free and silicon-free environmentally friendly materials. Overall, the SHA series distribution boxes provide stable power support for industry, homes, communications and other fields with their high efficiency, safety and reliability.
