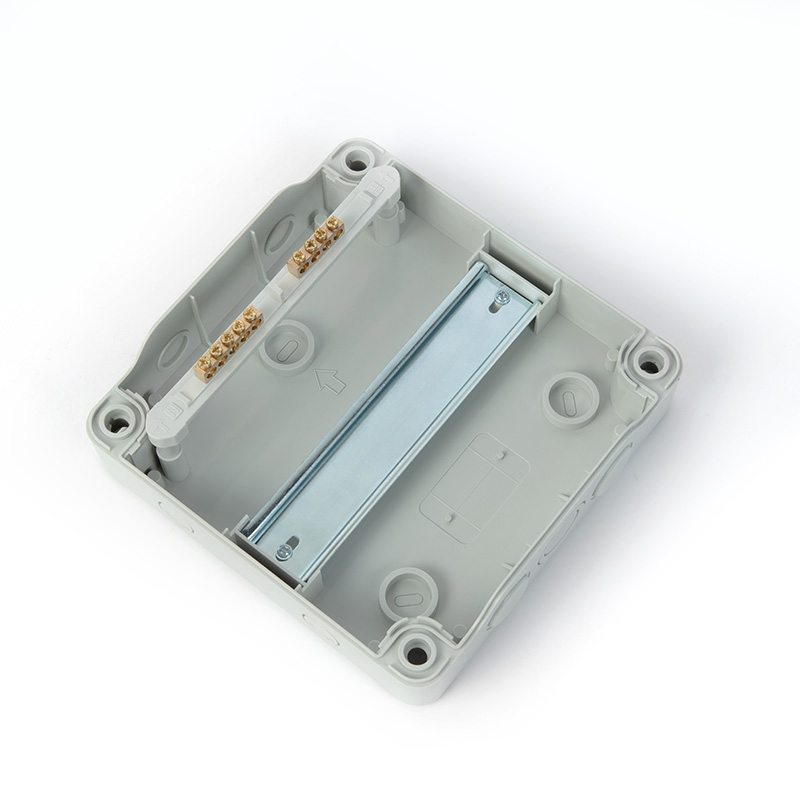

SELHOT's outdoor ABS distribution boxes are used in industry, homes, shading systems, communications and circuit breakers. Before installing a small distribution box, you must first choose a suitable location. It is necessary to consider factors such as the use function, ventilation and heat dissipation of the electrical box, and choose a location close to the main power supply and easy to operate.
IP protection level: IP66
Impact protection level: IK09
24-hour maximum ambient temperature: 35℃
Ambient temperature: -5°C to +40°C
Relative humidity: ≤ 50% at 40°C, ≤ 100% at 25°C
Rated insulation voltage: Ui: 690V
Protection level: II
Rated current (terminal): In = 75 A
N separable: no
Comply with standards: EN 60670-1, DIN EN 60670-24
Glow wire test temperature according to IEC 60695-2-11: 650 °C
UL 94 Rating: V-2
Temperature resistance: -25°C to +80°C
Outdoor ABS distribution box is efficient and safe, and is widely used in industry, home, communications and other fields. Its high-quality ABS shell and PC door ensure durability and stability, and its IP66 waterproof and dustproof and IK09 impact-resistant design can adapt to various harsh environments. Modular design, 4-12 channels optional, flexible configuration to meet various needs. Temperature resistant from -5°C to +40°C, and excellent moisture-proof performance to ensure stable operation. UL 94 V-2 flame retardant rating, environmentally friendly, halogen-free and silicon-free. Easy to install, complete protection measures, safe and reliable.
